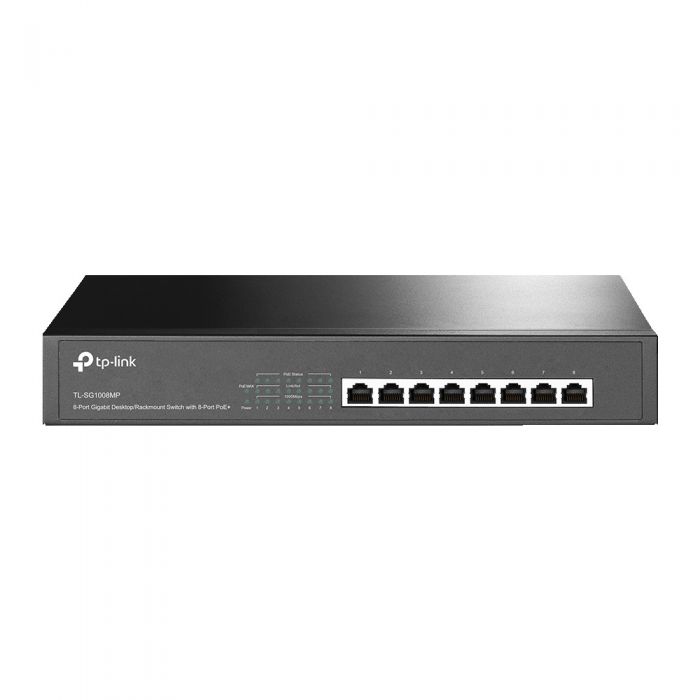

TP-LINK (TL-SG1008MP) 8-Port Gigabit Switch, 8-Port PoE+, Metal

Availability: In stock
  • TP-LINK (TL-SG1008MP)
  • 8-Port Gigabit Unmanaged Desktop/Rackmount Switch
  • 8-Port PoE+
  • Metal Chassis Enclosure
More Info


  • Interface 8 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
  • Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity 1
  • Physical Security Lock No
  • Power Supply 100-240VAC, 50/60Hz
  • Packet Forwarding Rate 11.904 Mpps
  • PoE+ Ports(RJ45) Standard: 802.3af/at compliant
    PoE+ Ports: 8 Ports
    Power Supply: 153W
  • Mac Address Table 4K
  • Buffer Size 1.5Mbits
  • Jumbo Frame 16 KB
  • Switching Capacity 16Gbps
  • Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
  • Mounting Desktop/Rack Mountable
  • Max Power Consumption 8.57W(220V/50Hz. no PD connected)
    173.65W(110V/60Hz. with 153W PD connected)
  • Max Heat Dissipation 29.22BTU/h(no PD connected)
    592.15BTU/h(with 153W PD connected)


  • Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
    Priority Function
    Mac Address Auto-Learning And Auto-Aging
    IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
  • Transfer Method Store-And-Forward


  • Certification FCC, CE, RoHS
  • Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  • Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
