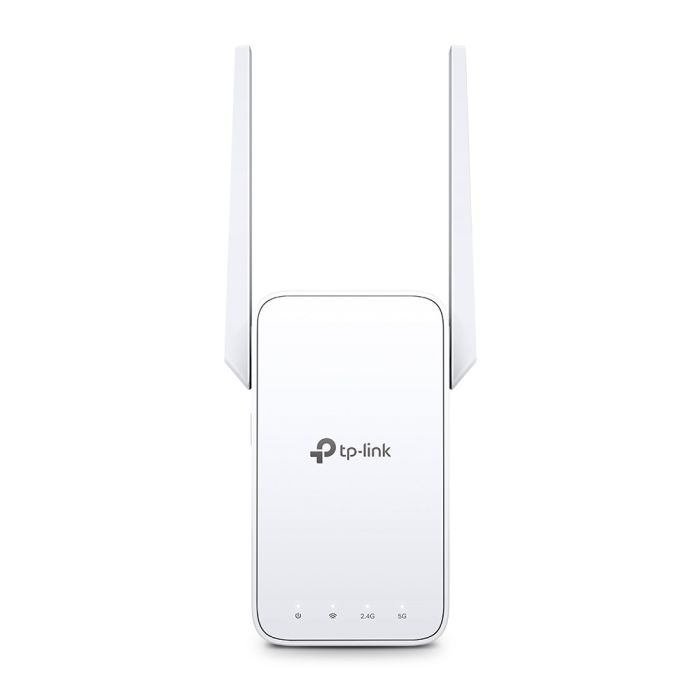

TP-LINK RE315 AC1200 (300+867) Dual Band Wi-Fi Range Extender

Features:

• Boost Whole Home WiFi with Your Existing Router
  A single router has limited WiFi coverage and always causes WiFi dead zones. RE315 wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you are at home.
• Flexibly Create Whole Home Mesh WiFi
  If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
• Faster Dual Band WiFi up to 1200 Mbps
  RE315 delivers dual band (2.4 GHz and 5 GHz) to transmit WiFi signals, doubling the performance of each band. It enables you to keep more devices connected at the same time with its 300 Mbps 2.4 GHz and 867 Mbps 5 GHz dual bands. Use the 2.4 GHz band to send email and browse the web and the 5 GHz band for gaming and HD streaming.
• Adaptive Path Selection: Keeps Itself Working at Top Speed
  Adaptive Path Selection keeps your network running at optimal speeds by automatically choosing the fastest connection path to the router. Always keep your devices fast and stable—ideal for network environments crowded with many devices and applications.
• Built-In Access Point Mode
  RE315 is more than a wireless range extende
• single router has limited WiFi coverage and always causes WiFi dead zones. RE315 wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you are at home.
• Flexibly Create Whole Home Mesh WiFi
  If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
• Faster Dual Band WiFi up to 1200 Mbps
  RE315 delivers dual band (2.4 GHz and 5 GHz) to transmit WiFi signals, doubling the performance of each band. It enables you to keep more devices connected at the same time with its 300 Mbps 2.4 GHz and 867 Mbps 5 GHz dual bands. Use the 2.4 GHz band to send email and browse the web and the 5 GHz band for gaming and HD streaming.
• Adaptive Path Selection: Keeps Itself Working at Top Speed
  Adaptive Path Selection keeps your network running at optimal speeds by automatically choosing the fastest connection path to the router. Always keep your devices fast and stable—ideal for network environments crowded with many devices and applications.
• Built-In Access Point Mode
  RE315 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.
• Secure One-Touch Connection for Easy Setup
  Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE315 will connect to the network.
  Step 2: Once connected, place RE315 at the best location—without reconfiguration.
  Notes: Please connect the extender to the router via the Tether app or Web UI if your router doesn’t support WPS.
• Find the Best Location with the Smart Signal Indicator
  The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.
• Control at Your Fingertips
  Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications:

• WIRELESS
  Working Modes Range Extender/Access Point
• HARDWARE FEATURES
  Interface 1 x 10/100Mbps Ethernet Port (RJ45)
  Button WPS Button, Reset Button
  Input Power 100-240V~50/60Hz
  Max. Power Consumption 9.5W（max power consumption）
  Dimensions ( W x D x H ) 3.5×1.4×4.9 in. (89×35.0×124.1 mm)
  Antenna 2 External Antennas
• WIRELESS FEATURES
  Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
  Frequency 2.4GHz & 5GHz(11ac)
  Signal Rate 5 GHz:Up to 867 Mbps
  2.4 GHz:Up to 300 Mpbs
  Working Modes Range Extender/Access Point
  Reception Sensitivity 5 GHz:
  11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
  11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
  11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
  11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
• 2.4 GHz:
  11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
  11n HT40 MCS7: -74dBm
  Wireless Modes Range Extender/Access Point
  Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
  Wireless Security 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions
  Transmission Power 2.4 GHz ≤20dBm, 5 GHz ≤30dBm
• OTHER
  Network Services Enabled by Default Web Server
  Manage and configure device through web (HTTP/HTTPS)
  • Port: 80/443   Protocol: TCP
  DHCP Server
  IP address assignment (DHCP)
  • Port: 67   Protocol: UDP
  App management
  Manage and configure device through app
  • Port: 20001   Protocol: TCP
  • Port: 20002   Protocol: UDP
• OTHERS
  Certification CE, RoHS
  Package Content Wi-Fi Range Extender RE315
  Quick Installation Guide
  System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
  Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Note:

• Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
• Smart Roaming is designed for devices that support the 802.11k/v standard.
• The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
• TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
