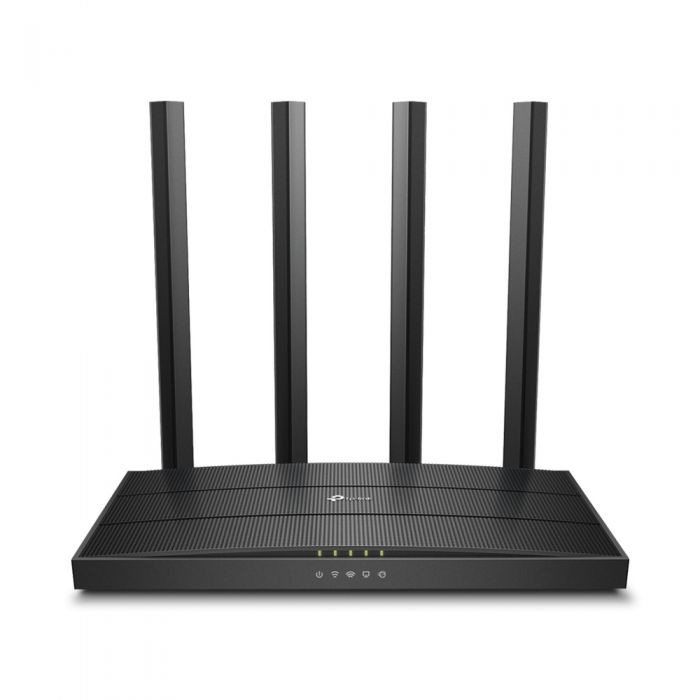

TP-LINK Archer C6 v4.0, AC1200 (867+400) WiFi Mesh Router

TP-LINK Archer C6 v4.0, AC1200 (867+400) WiFi Mesh Router

Features:

• Smooth Entertainment with AC1200 Dual Band Wi-Fi
  The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers speeds up to 400Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming.
• Advanced Security with WPA3
  The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
• Boosted Wi-Fi Coverage
  Throughout Your Home
  Four external antennas send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony. Beamforming technology detects devices, even if they are far-away or low-powered, and concentrates wireless signal strength towards them.
• MU-MIMO Brings More Simultaneous Connections
  MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!
• Gigabit Connectivity, 10× Faster
  With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections. Connect your favorite wired devices to Archer C6 and get impressed!
• Flexibly Create Whole Home Mesh WiFi
  If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
• It’s An Access Point, Too
  Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices
• Easy Setup and Management with the Tether APP
  The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.

Specifications:

WIRELESS

• Standards
  Wi-Fi 5
  IEEE 802.11ac/n/a 5 GHz
  IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds
  AC1200
  5 GHz: 867 Mbps (802.11ac)
  2.4 GHz: 400 Mbps (802.11n)
• WiFi Range
  3 Bedroom Houses4× Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areasBeamforming
  Concentrates wireless signal strength towards clients to expand WiFi range
• WiFi Capacity
  MediumDual-Band
  Allocate devices to different bands for optimal performance
  MU-MIMO
  Simultaneously communicates with multiple MU-MIMO clients
  Airtime Fairness
  Improves network efficiency by limiting excessive occupation
• Working Modes
  Router Mode
  Access Point Mode

HARDWARE

• Processor
  1.2 GHz CPU
• Ethernet Ports
  1× Gigabit WAN Port
  4× Gigabit LAN Ports
• Buttons
  WPS/Wi-Fi Button
  Power On/Off Button
  Reset Button
• Power
  12 V ⎓ 1 A

SECURITY

• WiFi Encryption
  WPA
  WPA2
  WPA3
  WPA/WPA2-Enterprise (802.1x)
• Network Security
  SPI Firewall
  Access Control
  IP & MAC Binding
  Application Layer Gateway
• Guest Network
  1× 5 GHz Guest Network
  1× 2.4 GHz Guest Network

SOFTWARE

• Protocols
  IPv4
  IPv6
• OneMesh™
  OneMesh™ Supported
  Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

  Parental Controls
  URL Filtering
  Time Controls
• WAN Types
  Dynamic IP
  Static IP
  PPPoE
  PPTP
  L2TP
• Quality of Service
  QoS by Device
• Cloud Service
  OTA Firmware Upgrade
  TP-Link ID
  DDNS
• NAT Forwarding
  Port Forwarding
  Port Triggering
  DMZ
  UPnP
• IPTV
  IGMP Proxy
  IGMP Snooping
  Bridge
  Tag VLAN
• DHCP
  Address Reservation
  DHCP Client List
  Server
• DDNS
  TP-Link
  NO-IP
  DynDNS
• Management
  Tether App
  Webpage

OTHER

• System Requirements
  Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  Cable or DSL Modem (if needed)
  Subscription with an internet service provider (for internet access)
• Certifications
  FCC, CE, RoHS
• Environment
  Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power
  CE EIRP:
  <20dBm(2.4GHz)
  <23dBm(5GHz)
  FCC:
  <30dBm(2.4GHz & 5GHz)


• WiFi Reception Sensitivity
  5GHz:
  11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；
  11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
  11ac HT80 mcs9:-62dBm;
  2.4GHz:
  11g 54Mbps:-78dBm;
  11n HT20 mcs7:-74dBm;
  11n HT40 mcs7:-71dbm；

PHYSICAL

• Dimensions (W×D×H) 8.5 × 4.6 × 1.2 in
  (215 × 117 × 32 mm)
• Package Contents Wi-Fi Router Archer C6
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
