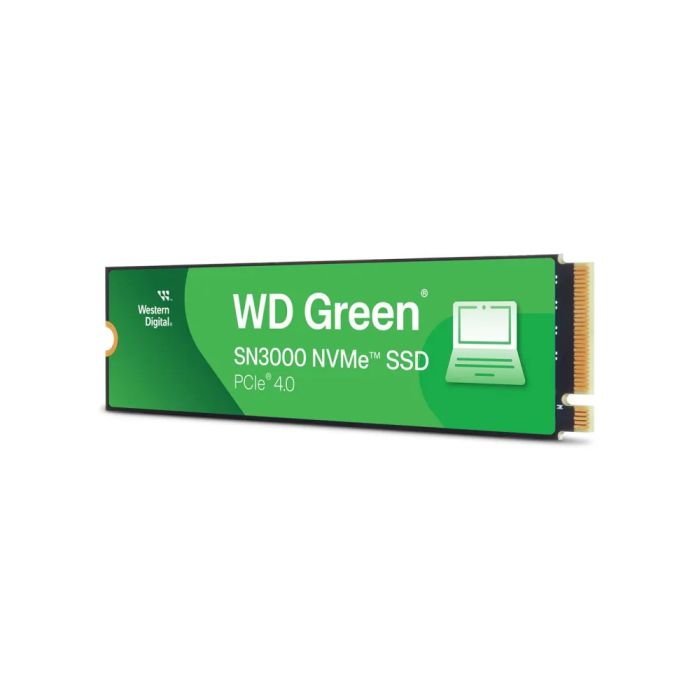

500GB M.2 NVMe PCI-E Gen4 SSD, WD GREEN SN3000, R/W 5000MBs/4100MBs

Main Specification

• Product Description WD Green SN3000 WDS500G4G0E-00CPS0 - SSD - 500 GB - PCIe 4.0 x4 (NVMe)
• Type Solid state drive - internal
• Capacity 500 GB
• NAND Flash Memory Type Quad-level cell (QLC)
• Form Factor M.2 2280
• Interface PCIe 4.0 x4 (NVMe)
• Features NVM Express (NVMe)
• Dimensions (WxDxH) 22 mm x 80 mm x 2.38 mm
• Manufacturer Warranty 3-year warranty

General

• Device Type Solid state drive - internal
• Capacity 500 GB
• NAND Flash Memory Type Quad-level cell (QLC)
• Form Factor M.2 2280
• Interface PCIe 4.0 x4 (NVMe)
• Features NVM Express (NVMe)
• Width 22 mm
• Depth 80 mm
• Height 2.38 mm

Performance

• SSD Endurance 100 TB
• Internal Data Rate 5000 MBps (read) / 4100 MBps (write)

Reliability

• MTBF 1,750,000 hours

Expansion & Connectivity

• Interfaces 1 x M.2 Card
• Compatible Bay M.2 2280

Miscellaneous

• Compliant Standards BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI, RoHS

Manufacturer Warranty

• Service & Support Limited warranty - 3 years
• Environmental Parameters
• Min Operating Temperature 0 °C
• Max Operating Temperature 80 °C
• Min Storage Temperature -40 °C
• Max Storage Temperature 85 °C
• Shock Tolerance (operating) 1500 g @ 0.5 ms half-sine
• Vibration Tolerance (operating) 5 g @ 10-2000 Hz
• Vibration Tolerance (non-operating) 4.9 g @ 7-800 Hz
