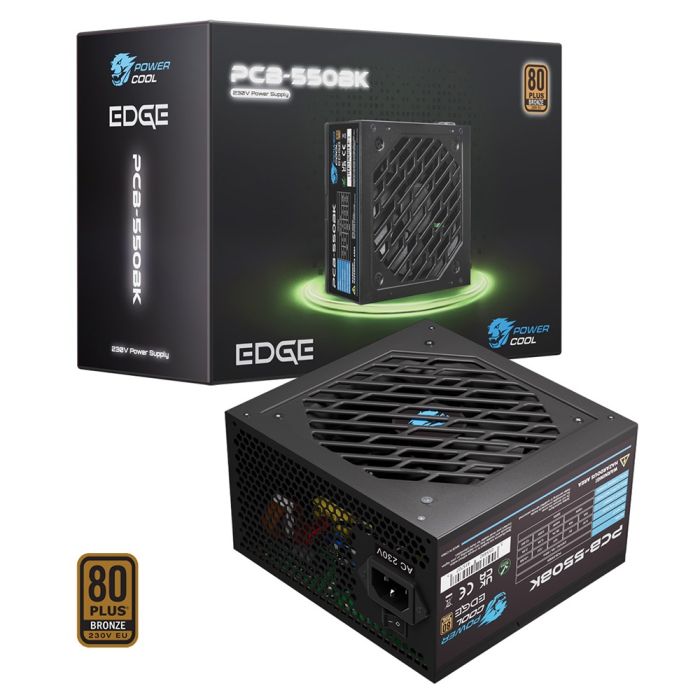

Powercool Edge Black ATX 550W 80 Plus Bronze 230V PSU

£37.99 £44.99
SKU
SK-21989
Availability: In stock
  • 80 Plus Bronze Certification - The Edge power supplies are 80 Plus Bronze 230V certified achieving an efficiency of up to 88 percent at a load of 50 percent.
  • Active PFC - Active PFC technology improves stability, protects equipment, and minimises energy loss, making it an efficient energy-saving solution.
  • Japanese Main Capacitor - With a top quality Japanese main capacitor included the Edge Series Range delivers a reliable life expectancy and quality assurance.
  • 120mm HDB Fan - Using a hydro dynamic fan bearing creates less friction, making it great for low RPM actions. This fan type keeps the fan running smoothly and efficiently for longer, keeping the noise level low and extending the lifespan of the power supply.
  • Connectivity - A wide range of connectivity options provides extensive hardware support, connect or upgrade multiple hard drives, SSDs, Graphics Card and other components efficiently. The cables and connectors are flat black giving your gaming PC a clean look. The flat black cables enable builders to easily manage and save space creating a neat and tidy PC.
  • Extra Compact Size - Measuring 140mm-long and 150mm-wide ATX form factor power supply ensures a comfortable fit in most PC cases. Freeing up more space for cable management and airflow to the rest of the system.
  • Gaming Aesthetics - To complement every gaming aesthetic the Powercool Edge power supplies are available in black or white. This is the black edition with a classic finish that is perfect for dark interiors.
More Info
Add to Compare
  • Efficiency: 85% @ 20% Load | 88% @ 50% Load | 85% @ 100% Load
  • M.T.B.F.: 100,000 Hours Minimum (At 25℃)
  • 20 + 4pin Motherboard Cable Length: 610mm
  • +12V CPU Cable Length: 645mm
  • PCI-e 1 (To 1st Connector) Cable Length: 540mm
  • PCI-e 1 (To 2nd Connector) Cable Length: 150mm
  • Peripheral Cable 1 (To 1st Connector) Cable Length: 420mm (SATA)
  • Peripheral Cable 1 (To 2nd Connector) Cable Length: 150mm (Molex)
  • Peripheral Cable 2 (To 1st Connector) Cable Length: 420mm (SATA)
  • Peripheral Cable 2 (To 2nd Connector) Cable Length: 150mm (Molex)
  • Peripheral Cable 3 (To 1st Connector) Cable Length: 580mm (SATA)
  • Peripheral Cable 3 (To 2nd Connector) Cable Length: 150mm (SATA)
  • Peripheral Cable 3 (To 3rd Connector) Cable Length: 150mm (SATA)
  • Peripheral Cable 3 (To 4th Connector) Cable Length: 150mm (SATA)
  • AC INPUT: 230 VAC 8A 50Hz
  • DC Output Max: 550W
  • +3.3V 15A, +5V 16A, +12V1 36.7A, -12V 0.3A, +5VSB 2.5A
  • 20+4 Pin Main Connectors: 1
  • 4+4 Pin 12V Connectors: 1
  • SATA Connectors: 6
  • 4-Pin Molex Connectors: 2
  • 6+2 Pin PCI-e Connectors: 2
  • Dimensions: 150mm x 86mm x 140mm (W x H x D)
  • Input Voltage: 230 VAC
  • Input Current: 8A
  • Input Frequency Range: 50Hz
  • PFC: Active PFC
  • Power Good Signal: 100-500 ms
  • Hold Up Time: > 16ms
  • Efficiency: > 80%
  • MTBF: 100,000 Hours
  • Protection: OVP / UVP / OPP / SCP
  • Power: 550W
  • Operation Temperature: 0-50°C
  • Safety: UKCA / CE / RoHS
  • Cooling: 120mm HDB Fan
  • Noise: Less Than Or Equal To 35dBA
  • 80 Plus Certified: Yes - 80 Plus Bronze
  • Manufacturer Part Number: PCB-550BK
  • EAN Number: 5055492415707
  • Has Mains Plug: No
  • Colour: Black
  • What's In The Box: PSU, Screws. Cable Ties & Manual
  • Unit (Product) Dimensions (mm): 150mm x 86mm x 140mm (W x H x D)
  • Packaging Dimensions (mm): 262mm x 180mm x 116mm (W x H x D)
  • Net Weight (KGs): 1.38 KGs
  • Gross Weight (KGs): 1.54 KGs
  •
