main product photo

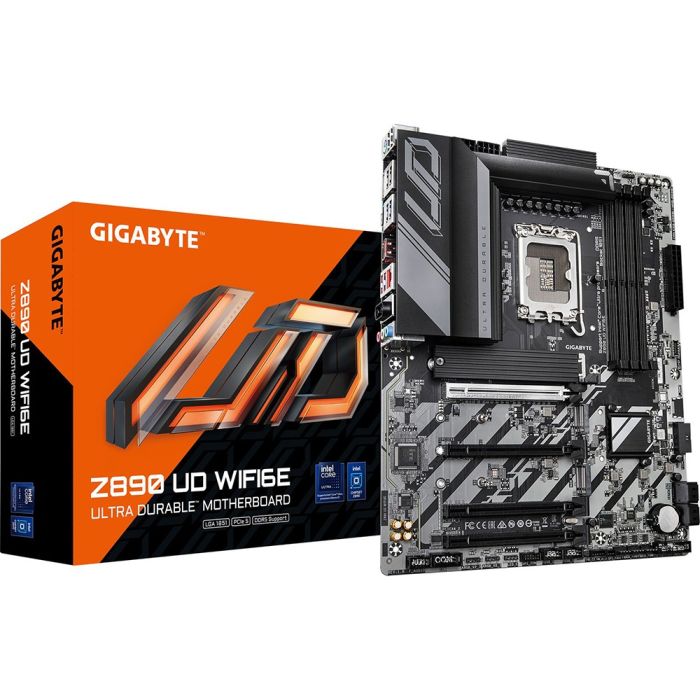

Gigabyte Z890 UD WIFI6E, s1851, DDR5, PCIe 5.0, WiFi 6E / BT 5.3, USB-C

£199.00
SKU
SK-21933
Availability: In stock
  • Gigabyte Z890 UD WIFI6E
  • Form Factor: ATX
  • Socket: 1851
  • Memory: DDR5 (MAX: 256GB)
  • Storage: 3 X M.2, 4 X SATA
  • WI-FI: Bulit-In
  • USB: 10 Ports
    • More Info
Add to Compare
  • Supported Processor Manufacturer: Intel
  • Supported Processors: Intel Core Ultra Processors
  • 64-bit Support: Yes
  • Socket: LGA1851
  • 1 x USB4
  • 1 x USB 3.1
  • 4 x USB 3.0
  • 4 x USB 2.0
  • 1 x DisplayPort 1.4
  • 4 x SATA III
  • 1 x USB-C 3.0 header (supports 1 port)
  • 1 x USB 3.0 header (supports 2 ports)
  • 2 x USB 2.0 headers (supports 4 ports)
  • Memory Bus Speed: Up to 8800 MT/s Memory Type: DDR5
  • Northbridge: Intel Z890
  • RAID Supported: Yes
  • RAID Format: RAID 0, 1, 5, 10
  • SATA Supported: Yes
  • Keyboard/Mouse Combo Port: 1 x PS/2
  • RJ-45 Ports: 1 x RJ-45
  • Audio Line In Ports: 1 x 3.5mm Jack
  • Audio Line Out Ports: 1 x 3.5mm Jack
  • Microphone In Port: 1 x 3.5mm Jack
  • Antenna Connector(s): 2 x SMA Antenna
  • 1 x Front Panel
  • 1 x Front Audio
  • 1 x CPU fan header
  • 1 x CPU fan/Water Cooling pump header
  • 2 x System fan headers
  • 2 x System fan/Water Cooling pump headers
  • 2 x Thunderbolt AiC headers
  • 1 x COM header
  • TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  • 1 x 24-pin ATX
  • 2 x 8-pin EPS
  • 1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen5)
  • 1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen4)
  • 1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen4 or SATA)
  • 3 x 3-pin ARGB headers
  • 1 x 4-pin RGB header
  • 1 x PCI Express 5.0 x16 slot
  • 3 x PCI Express 4.0 x16 slots (@ x4/x4/x1)
  • Maximum RAM: 256 GB
  • Memory Slot: 4 x DIMM
  • Integrated Graphics Supported: Yes
  • Integrated Sound: Realtek
  • Warranty: 3 Years
  • Integrated Network: Realtek
  • Network Speeds Supported: Up to 2.5 Gbps
  • Wireless LAN: Yes - Wi-Fi 6E
  • Bluetooth: Yes
  • Bluetooth Version: 5.3
  • Operating Systems Supported: Windows 11
  • BIOS: 1 x 256 Mbit flash
  • Jumpers: 1 x Clear CMOS
  • Software Included: Yes
  • Drivers: Yes
