main product photo

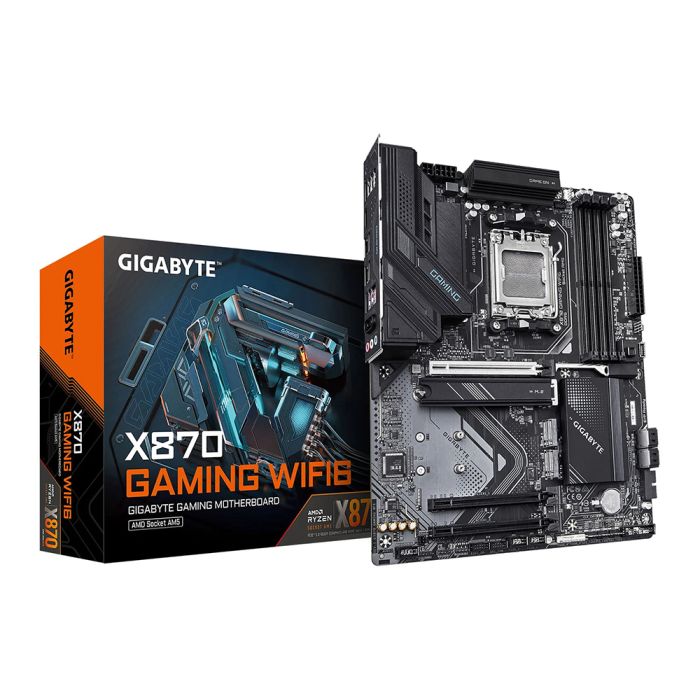

Gigabyte X870 GAMING WIFI6 Full ATX, 4xDDR5, 3xM.2, USB-C, 2.5GbE LAN

£179.99 £219.00
SKU
SK-21376
Availability: Out of stock
  • Gigabyte X870 GAMING WIFI6
  • AMD X870
  • Socket AM5
  • 4 x DDR5
  • PCIe 5.0
  • 3x M.2
  • 2.5GbE
  • WiFi6
  • USB 4.0
  • AMD EXPO
  • ATX
More Info
Add to Compare
  • Core Specifications
  • Edition X870 GAMING WIFI6
  • Form Factor ATX
  • CPU Socket AM5
  • Chipset AMD X870
  • RAM Memory Support
  • Memory Type DDR5
  • Memory Channel Dual (2)
  • Memory Type (ECC) Non-ECC
  • Memory Type (R/U) UDIMM (Unbuffered)
  • Memory Speed (Mhz)
  • DDR5 - 4400
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800(OC)
  • DDR5 - 8000(OC)
  • Max. Memory Capacity 256GB
  • Audio
  • Audio 7.1 Channel HD Audio
  • Graphics Support
  • Primary GPU Interface PCIe 5.0 (x16)
  • NVIDIA SLI Support N/A
  • AMD CrossFire Support N/A
  • Integrated Graphics
  • On-Board Graphics Connectors
  • HDMI
  • USB 4.0
  • Internal Connectivity
  • Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x2
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen5x4
  • 2 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
  • SATA Support N/A
  • RAID Support via
  • Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 1 x RGB (RGBW) LED Strip Header
  • 4 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • External Connectivity
  • Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN
  • Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Realtek (2.5GbE LAN)
  • Rear I/O Connectors
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 2 x USB 4.0 Type-C
  • 2 x WiFi Antenna connectors
  • Additional Specifications
  • Water Cooled No
  • Cooling Passive Heatsinks
  • QPI Speed N/A
  • Board Dimensions 305 x 244 mm
