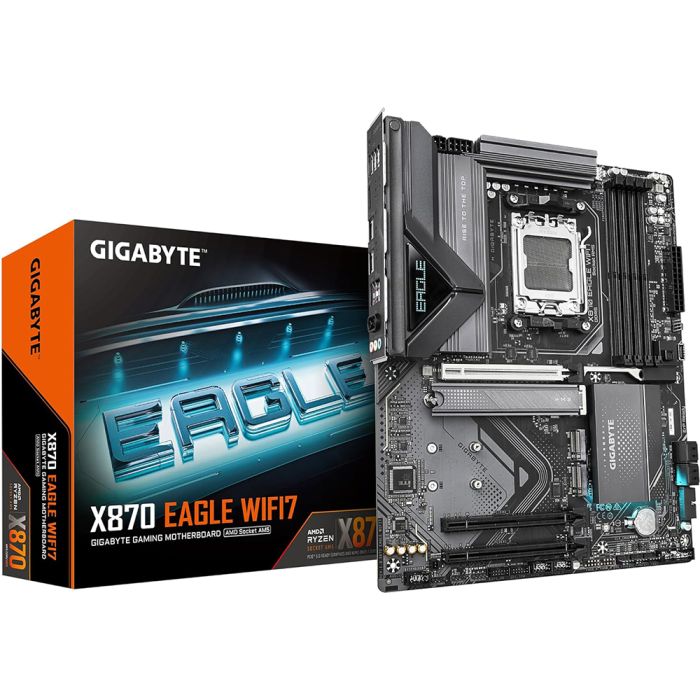

GIGABYTE X870 EAGLE WIFI7, 1xPCIe 5.0, Wi-Fi 7, 2.5GbE LAN

• CPU
• CPU Socket Socket AM5
• CPU Brand AMD
• Installed Processors (Max) 0 (1)
• Supported Processor Manufacturer AMD
• Supported Processors AMD Ryzen 9000 / 8000 / 7000 Series Processors
• 64-bit Support Yes
• Socket AM5

Rear Panel I/O Ports

• 2 x USB-C 4
• 1 x USB 3.1
• 3 x USB 3.0
• 4 x USB 2.0
• DisplayPorts Yes via USB-C
• HDMI Port 1 x HDMI 2.1
• RJ-45 Ports 1 x RJ-45
• Audio Line In Ports 1 x 3.5mm Jack
• Audio Line Out Ports 1 x 3.5mm Jack
• Microphone In Port 1 x 3.5mm Jack
• Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

• 4 x SATA III
• 1 x USB-C 3.2 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)
• 1 x Front Panel
• 1 x Front Audio
• 1 x CPU fan header
• 1 x CPU fan/Water Cooling pump header
• 4 x System fan headers
• 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x 24-pin ATX
• 1 x 8-pin EPS
• 1 x 4-pin EPS
• 1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5)
• 2 x M.2 slots, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen4)
• 3 x 3-pin ARGB headers
• 1 x 4-pin RGB header

Memory

• Memory Bus Speed Up to 8000 MT/s
• Memory Type DDR5
• Maximum RAM 256 GB
• Memory Slot 4 x DIMM

Motherboard

• Northbridge AMD X870
• RAID Supported Yes
• RAID Format RAID 0, 1, 10
• SATA Supported Yes

Expansion

• 1 x PCI Express 5.0 x16 slot
• 2 x PCI Express 3.0 x16 slot (@ x1/x1)

Graphics Device

• Integrated Graphics Supported Yes

Sound

• Integrated Sound Realtek

Network

• Integrated Network Realtek
• Up to 2.5 Gbps
• Wireless LAN Yes - Wi-Fi 7
• Bluetooth Yes
• Bluetooth Version 5.4

System Requirements

• Operating Systems Supported Windows 11
• Windows 10 64-bit

System

• BIOS 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Jumpers 1 x Clear CMOS
• 1 x Reset
• Software Included (may be trial or restricted) Yes
• Drivers Yes

Physical

• Form Factor ATX Motherboard
• Width 244 mm
• Length 305 mm

Key Features

• Wireless Network Yes
• Motherboard Width 244 mm
• Motherboard Height 305 mm
• Main Colour Black
• Memory Channel Dual
• On-board Audio Type 7.1
• Number of SATA Ports 4 port(s)
• Number of USB Ports 10 port(s)
• USB 3.0 Support Yes
• Multi GPU Support No
• VGA Connection No
• DVI Connection No
• HDMI Connection Yes
• DisplayPort Connection No
• Motherboard Form Factor ATX
• Drive Interface Type PCIe 5.0 x4 NVMe
• Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
• Motherboard Chipset AMD X870
• Thunderbolt No
• Motherboard Model Gigabyte X870 EAGLE WIFI7
• USB 3.1 Support Yes
• Internal USB3.0 Header Yes
• M.2 Support Yes
• On-board RGB Control Gigabyte RGB Fusion
• RGB Header Type 3-Pin ARGB
• Addressable RGB Yes
• Internal USB Type-C Header Yes
• Max Memory Speed Supported (Non-overclocked) 5200 MT/s
• Max Memory Speed Supported (overclocked) 8000 MT/s
• CPU Power Pins (female) 12
• Total M.2 Slots 3
• Maximum NVMe M.2 ports 3
• SATA ports 4
• No. of front USB2.0 ports supported 4
• No. of front USB3.0 ports supported 2
• No. of front USB-C ports supported 1
• Back Connect Support No
