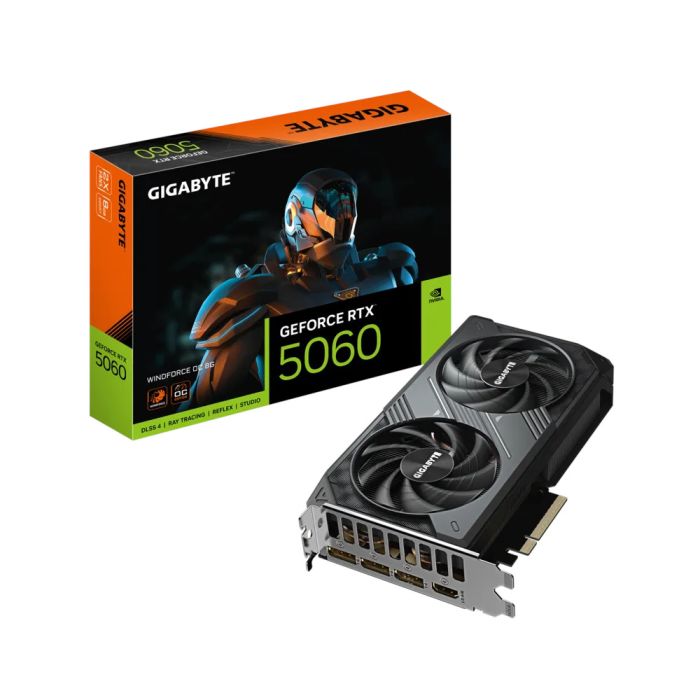

Gigabyte NVIDIA GeForce RTX 5060 WINDFORCE OC 8GB GDDR7

Gigabyte NVIDIA GeForce RTX 5060 WINDFORCE OC 8GB GDDR7 - GV-N5060WF2OC-8GD

Features:

• NVIDIA Blackwell Architecture
  The Ultimate Platform for Gamers and Creators
• Fifth-Gen Tensor Cores
  Max AI performance with FP4 and DLSS 4
• New Streaming Multiprocessors
  Optimized for neural shaders
• Fourth-Gen Ray Tracing Cores
  Built for Mega Geometry
• AI-Enhanced Graphics and Performance
  NVIDIA DLSS 4 with Multi Frame Generation
• Game-Winning Responsiveness
  NVIDIA Reflex 2 with Frame Warp
• True-to-Life Graphics
  Full ray tracing with neural rendering
• Digital Humans and AI Assistants
  NVIDIA ACE
• Accelerate Your Creativity
  NVIDIA Studio creator tools and technology
• Enhance Any Video with AI
  NVIDIA Broadcast and ninth-gen NVIDIA Encoder
• Performance and Reliability
  NVIDIA app with Game Ready and Studio Drivers
• The Ultimate Gaming Display Technologies
  NVIDIA G-SYNC
• WINDFORCE COOLING SYSTEM
  The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
• GRAPHENE NANO LUBRICANT
  Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
• ALTERNATE SPINNING
  Reduce the turbulence of adjacent fans and increase airflow pressure.
• 3D ACTIVE FAN
  The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
• SERVER-GRADE THERMAL CONDUCTIVE GEL
  To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
• COPPER PLATE & COMPOSITE COPPER HEAT PIPE
  The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
• SCREEN COOLING
  Extended heatsink allows air to pass through, providing better heat dissipation.
• REINFORCED STRUCTURE
  The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
• ULTRA DURABLE
  ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
  LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
  LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
• FRIENDLY PCB DESIGN
  Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
• GIGABYTE CONTROL CENTER
  GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications:

• Graphics Processing
  GeForce RTX™ 5060
• Core Clock
  2512 MHz (Reference card : 2497MHz)
• CUDA® Cores
  3840
• Memory Clock
  28 Gbps
• Memory Size
  8 GB
• Memory Type
  GDDR7
• Memory Bus
  128 bit
• Card Bus
  PCI-E 5.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=199 W=116 H=40
• PCB Form
  ATX
• DirectX
  DirectX 12 API
• OpenGL
  4.6
• Recommended PSU
  550W
• Power Connectors
  8 Pin*1
• Output
  DisplayPort 2.1b *3
  HDMI 2.1b *1
• Accessories
  Quick guide
