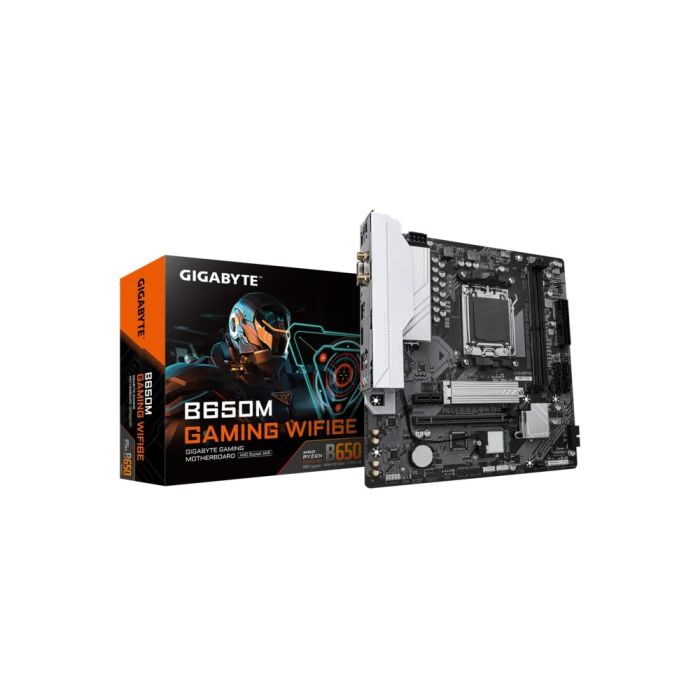

main product photo

Gigabyte B650M GAMING WIFI6E, AM5, DDR5, SATA3, PCIe 4.0

£116.99 £125.00
SKU
SK-21838
Availability: In stock
  • Gigabyte B650M GAMING WIFI6E, AM5, DDR5, SATA3, PCIe 4.0
  • CPU
  • AMD Socket AM5, support for:
  • AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset
  • AMD B650
  • Memory
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400
  • MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
  • Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate
  • (speed), and number of DRAM modules, please refer to "Memory Support List" on
  • GIGABYTE's website for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon™ Graphics support
  • - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
  • Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • Realtek® Wi-Fi 6E RTL8852CE
  • - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • - BLUETOOTH 5.3
  • - Support for 11ax 160MHz wireless
  • (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  •  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
  •  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  •  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
  • 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • - 2 x USB 3.2 Gen 1 ports on the back panel
  • - 1 x USB 2.0/1.1 port on the back panel
  • Chipset:
  • - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset+USB 2.0 Hub:
  • - 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-
  • TPM2.0 SPI V2 module only)
  • 1 x Clear CMOS jumper
  • Back Panel Connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port*
  • 1 x Q-Flash Plus button
  • 2 x USB 3.2 Gen 1 ports
  • 1 x HDMI port*
  • 1 x RJ-45 port
  • 3 x audio jacks
  • * Actual support may vary by CPU.
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
  • Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
  • Form Factor
  • Micro ATX Form Factor; 24.0cm x 22.5cm
More Info
Add to Compare
  • B650M GAMING WIFI6E
  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI , D-sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
