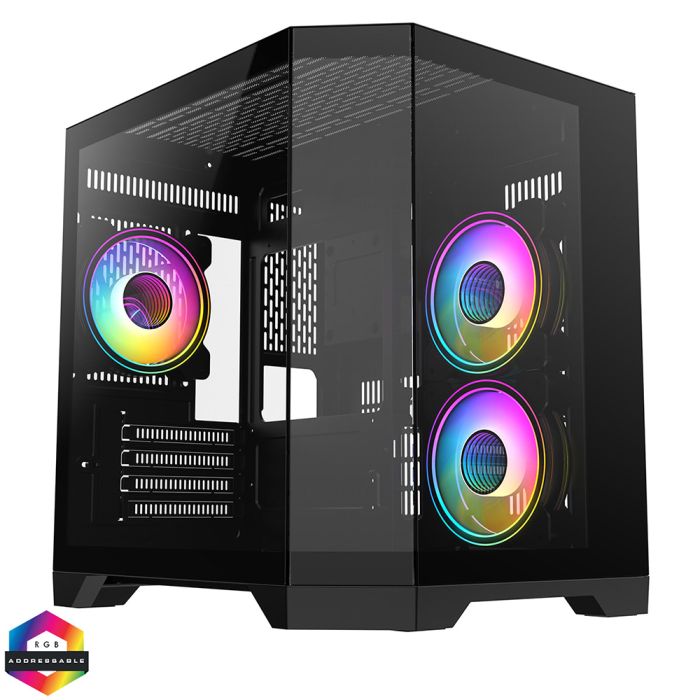

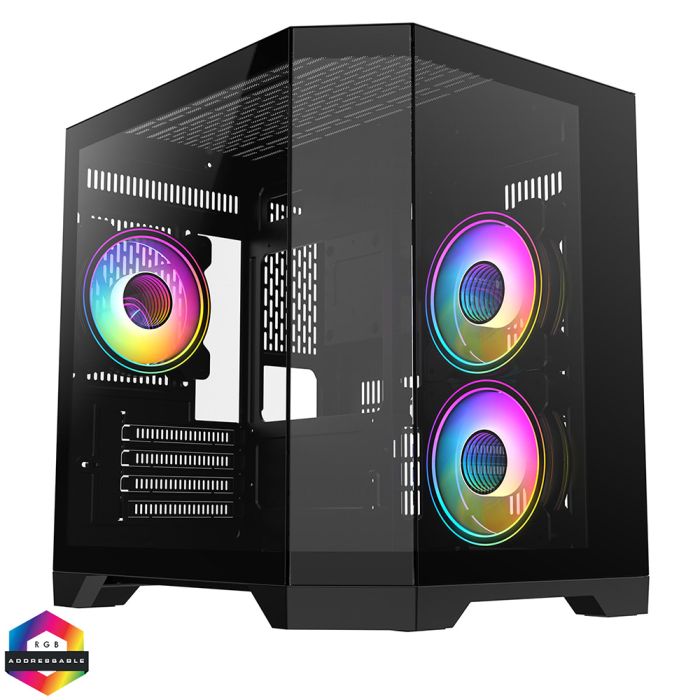

CIT DS240 Black Micro-ATX Gaming Case with 3 x CiT Celsius 120mm Fans

• DS240 Black Micro-ATX Gaming Case With Dual Chamber Panoramic Tempered Glass With 3 x CiT Celsius 120mm Fans and 6 Port PWM Hub
• Stylish Aesthetic - The CiT DS240 finished in all black and features a cleaver design innovation with a 3-piece panoramic tempered glass design with two flat pieces and 1 angled piece of tempered glass, this unique design captures the attention and draws the eye of the viewer into the case. Unreal display potential the DS240 offers an uninterrupted view of all your gaming hardware.
• Dual Chamber Layout - Different from traditional computer cases the DS240 is designed using a dual chamber layout which provides plenty of space for your hardware, good airflow & ventilation, cable management and guarantees you can create a beautiful build. The dual chamber design allows you to situate your power supply, hard drives and cables in the rear chamber freeing up the main chamber for your fan and radiator mounting points creating an unrestricted view of your components that matter.
• Three CiT Celsius Dual-Ring Infinity Black ARGB Fans Bundled - This version comes bundled with 3 x CiT Celsius Dual-Ring Infinity Black ARGB Fans - As a PWM fan (Pulse-Width Modulation) its rotation speed can be user controlled by connecting the fan to a compatible motherboard or fan controller. As a result users can choose whether they want the fan to run quietly or have enhanced airflow. With Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the Infinity fans add a mesmerising LED lighting display to the DS240. Please note the fans are included inside the box only and will need to be installed.
• Fan Controller Included - A PWM hub is included inside the DS240 which allows you to add up to 6 case fans and is powered directly from your power supply via SATA. You can access it using the LED button and it's connected to the Motherboard using a single cable - you can setup without any additional cables.
• PWM Fan Control - The hub can be connected to the CPU fan interface on your chosen Motherboard to access temperature readings. An increased CPU temperature increases the fan speed automatically and swiftly cools the system down. Conversely when the CPU temperature decreases the fan automatically slows reducing the overall noise.
• Radiator Capacity - The DS240 has room to install a 240mm radiator on the Motherboard plate, top & rear.
• Motherboard Software - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
• Tempered Glass Side Panelling - The tempered glass side panel has been optimised for ease of use, no tools are required when it comes to removing the panel. This is thanks to the inclusion of the easy slot in pins makes it easy accessing the internals.
• Micro-ATX Housing - Standing at 379mm high, 277mm wide and 350mm deep the DS240 is compatible with a wide range of components, with 340mm of clearance for GPUs and it can facilitate CPU coolers up to 160mm tall. Additionally the I/O panel located at the top possesses one USB3.0 & one USB2.0 port, combined audio port & LED & Reset button. There are four expansion slots on the rear panel for PCIe devices.

Specifications

• Chassis Dimensions (Excluding Fascia / Panels): (W) 277 x (H) 352 x (D) 350mm
• Motherboard Supported Radiator(s): 120mm and 240mm
• Top Supported Radiator(s): 120mm and 240mm
• Bottom Supported Radiator(s): 120mm and 240mm
• Rear Supported Radiator(s): 120mm
• CiT Celsius Dual-Ring Infinity Black ARGB Fan Specification:
• Dimensions: 120 x 120 x 25mm
• Fan Frame Colour: Black
• Fan Blades / Colour: 9 / Semi-Transparent White
• LED Qty / Type: 21 / ARGB
• Bearing Type: Hydraulic Bearing
• Fan Speed: PWM 800-1500 RPM
• Max. Air Flow (Max.): 30.46CFM
• Max. Static Air Pressure: 0.99mm-H2O
• Noise Level (Max.): 15.98 dBA
• Cable Length: 550mm
• Accessories: Screws
• Connectors: 3pin Male AURA Connector / 3pin Female AURA Connector (Passthrough) / 4pin Male
• Fan Connector / 4pin Female Fan Connector (Passthrough)
• Rated Voltage: 12V
• Rated Current (Max.): 0.1A
• Rated Input Power (Max.): 1.2W
• Test Voltage: 12V
• Start Voltage: 3.5V
• M.T.B.F.: 30,000 Hours
• 3 x 120mm CiT Celsius Dual-Ring Infinity Black ARGB Fans Inc.:
• Fan Powered Via: 4pin PWM
• Fan LEDs Powered Via: 3pin AURA
• Fan Controller Included: Yes - PWM
• Fan Controller Power Via: SATA Connector
• LED Controller: Yes
• Fan Power Connector: 3 or 4pin
• LED Power Connector: 3pin AURA
• Fan Control Via: LED Button or MB Sync
• Supported Qty of Fans (Max.): 6
• Supported Qty of LEDs (Max.): 6
• Additional Chassis Specifications:
• Motherboard Max. Size: (W) 244 x (H) 244mm
• PSU Max. Length: 190mm
• PSU Location: Rear Right
• HD Audio Ports: Combined Headphone / Mic
• Dust Filters: 2 x Top & Bottom

Case Specifications

• Form Factor: Micro ATX
• Motherboard Support: Micro ATX, Mini ITX
• PSU Support: Standard ATX
• PSU Location: Bottom
• Gaming Case: Yes
• Water Cooling: Water Cooling Ready!
• Supported Radiator Size: 240mm
• Supported Radiator Positions: Top
• Body Material: 0.5mmSPCC
• Front Bezel Material: Tempered Glass
• Side Panel: Tempered Glass
• Internal Cable Management Depth: 58mm
• Internal Bays: 1 x 3.5” Internal
• 2 x 2.5” Internal
• Drive Bay Notes: 2 x 2.5" Shared with 1 x 3.5"
• Expansion Slots: 4 x Full Size
• Cooling Front: None
• Cooling Top: Space For 2 x 120mm Fans
• Cooling Rear: Space For 1 x 120mm Fan
• Cooling Side: Space For 2 x 120mm Fans (On Motherboard Plate)
• Cooling Bottom: Space For 2 x 120mm Fans
• Fan Controllers: 1 Fan Controllers, controlling up to
• 6 fans in total
• 1 x USB 3.0
• 1 x USB 2.0
• 1 x HD Audio
• 1 x Microphone
• GPU Max Length: 340mm
• CPU Cooler Maximum Height: 160mm
• Front Bezel Colour: Black
• Body Colour: Black
• System Cabinet Features:
• PSU Included: No

General Specifications

• Manufacturer Part Number: CIT-DS240BLK-CEL
• EAN Number: 5055492415547
• Has Mains Plug: No
• Colour: Black
• What's In The Box: Case
• 3 x Celsius Fans
• Accessories
• Unit (Product) Dimensions (mm): 277mm x 379mm x 350mm (W x H x D)
• Packaging Dimensions (mm): 534mm x 437mm x 350mm (W x H x D)
• Net Weight (KGs): 4.7 KGs
• Gross Weight (KGs): 5.9 KGs
