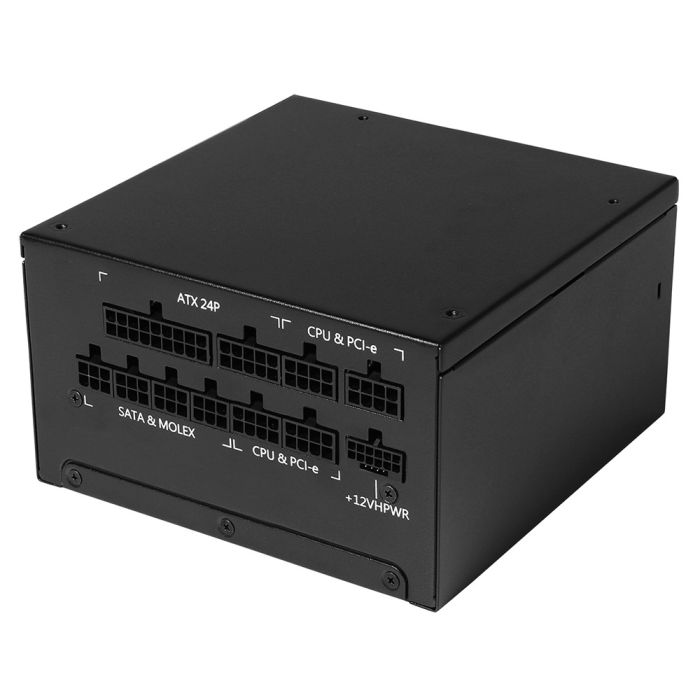

main product photo

CWT 1000W Fully Modular 80+ Gold ATX3.0 PCIe 5.0 PSU, 140mm Fan

£105.00 £119.00
SKU
SK-21802
Availability: Out of stock
  • Manufacturer Part Number: CSZ1000V5
  • Modular Cable Configuration - A Modular cable management design lets you use only the cables you need. You get to save space and create a cleaner-looking build and improve airflow.
  • 80 Plus Gold Certification - 80 Plus Gold certified with 90 percent efficiency, high efficiency operation lowering energy consumption, noise, temperatures and less energy gets wasted during power conversion, the lower the operating costs will be for the user.
  • PCIe 5.0 Ready - The CSZ1000V5 includes a 12VHPWR 16-Pin connector offering a powerful and stable performance allowing the PSU to run next-generation GPUs, RTX 3090 TI/PCIe 5.0 GPUs. Max. Power output up to 600W.
  • Japanese 105 Degree Celsius-Rated Capacitors - Using Japanese industrial-grade capacitors, CSZ1000V5 power supplies offer the fixed power and long-term reliability.
  • Low Noise Operation - A 140mm Black fluid dynamic bearing fan with a zero RPM fan mode allows for the PSU fan to be completely off when it is not needed and will automatically turn the fan on when your PC reaches a certain temperature. It keeps the fan noise down even when operating at full load.
  • Hardware Protection - A full line up top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection) & OTP (Over Temperature Protection).
  • All Black Look - Black is the colour with black flat cables, black connectors and an all-black finish give your gaming PC a clean professional High-Tec look.
  • Flat Black Cables - With flat black cables, PC builders can easily manage space creating a nice clean build with minimal fuss.
  • Warranty - The CWT CSZ1000V5 PSU comes with 2-year warranty.
More Info
Add to Compare

Specifications

  • Connectors: 12pin PCIe 5.0: x 1
  • PSU Specifications
  • AC INPUT: 100-240 VAC 13A 50-60Hz
  • +3.3V 22A, +5V 22A, +12V1 83.5A, -12V 0.3A, +5VSB 3A
  • DC Output Max: 1000W

Connectors

  • 20+4 Pin Main Connectors: 1 (Modular)
  • 4+4 Pin 12V Connectors: 2 (Modular)
  • SATA Connectors: 12 (Modular)
  • 4-Pin Molex Connectors: 4 (Modular)
  • 6+2 Pin PCI-e Connectors: 4 (Modular)
  • Floppy Drive Connectors: 1 (Modular)
  • Detailed Specifications
  • Dimensions: 150mm x 87mm x 150mm (W x H x D)
  • Input Voltage: 100-240 VAC
  • Input Current: 13A
  • Input Frequency Range: 50-60Hz
  • PFC: Active PFC
  • Power Good Signal: 100-150ms
  • Hold Up Time: >16ms at 80 Percent Load
  • Efficiency: 90%
  • MTBF: 100,000 Hours
  • Protection: OPP / SCP / UVP / OVP / OCP / OTP
  • Power: 1000W
  • Operation Temperature: 0-40°C
  • Safety: CB / CE / UKCA / TUV / CTUV us / ErP / RoHS / WEEE
  • Cooling: 140mm FDB Fan
  • Noise: 44.5dBA
  • 80 Plus Certified: Yes - 80 Plus Gold

General Specifications

  • Manufacturer Part Number: CSZ1000V5
  • EAN Number: 5055492413291
  • Has Mains Plug: No
  • Colour: Black
  • What's In The Box: PSU
  • Modular Cables
  • Screws
  • Manual
  • Unit (Product) Dimensions (mm): 150mm x 87mm x 150mm (W x H x D)
  • Packaging Dimensions (mm): 345mm x 230mm x 120mm (W x H x D)
  • Net Weight (KGs): 1.76 KGs
  • Gross Weight (KGs): 3.1 KGs
