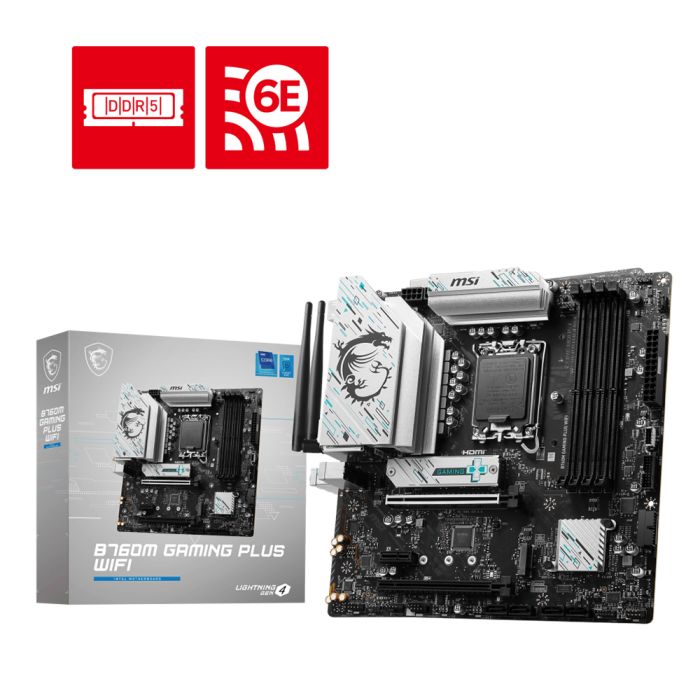

MSI B760M GAMING PLUS WIFI Intel s1700 mATX, 4 x DDR5

CPU

• CPU Socket Socket 1700
• CPU Brand Intel
• Installed Processors (Max) 0 (1)
• Supported Processor Manufacturer Intel
• Supported Processors Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
• 64-bit Support Yes
• Socket LGA1700

Rear Panel I/O Ports

• USB Ports 2 x USB 3.1
• 2 x USB 3.0
• 2 x USB 2.0
• DisplayPorts 2 x DisplayPort 1.4
• HDMI Port 2 x HDMI 2.1
• Keyboard/Mouse Combo Port 1 x PS/2
• RJ-45 Ports 1 x RJ-45
• Audio Line In Ports 1 x 3.5mm Jack
• Audio Line Out Ports 1 x 3.5mm Jack
• Microphone In Port 1 x 3.5mm Jack
• Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

• SATA Connectors 4 x SATA III
• USB Connectors 1 x USB-C 3.1 header (supports 1 port)
• 2 x USB 3.0 headers (supports 4 ports)
• 2 x USB 2.0 headers (supports 4 ports)
• Front Panel Connectors 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support 1 x CPU fan header
• 1 x Pump fan header
• 2 x System fan headers
• Serial Connectors 1 x COM header
• Chassis Intrusion Connector 1 x Chassis Intrusion header
• TPM Header 1 x TPM header
• Power Connector Port 1 x 24-pin ATX
• 2 x 8-pin EPS
• Other Connectors 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
• 2 x 3-pin ARGB LED headers
• 1 x 4-pin RGB LED header

Memory

• Memory Bus Speed Up to 6800+ MHz
• Memory Type DDR5
• Maximum RAM 192 GB
• Memory Slot 4 x DIMM

Motherboard

• Northbridge Intel B760
• RAID Supported Yes
• RAID Format RAID 0, 1, 5, 10
• SATA Supported Yes

Expansion

• Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
• 1 x PCI Express 3.0 x1 slot

Graphics Device

• Integrated Graphics Supported Yes

Sound

• Integrated Sound Realtek ALC897

Warranty

• Warranty 3 Years

Network

• Integrated Network Realtek RTL8125BG
• Network Speeds Supported Up to 2.5 Gbps
• Wireless LAN Yes (Wi-Fi 6E)
• Wireless Network Speed Up to 2.4 Gbps
• Bluetooth Yes
• Bluetooth Version 5.3

System Requirements

• Operating Systems Supported Windows 11 64-bit, Windows 10 64-bit

System

• Software Included (may be trial or restricted) Yes
• Drivers Yes

Physical

• Form Factor mATX Motherboard
• In The Box Motherboard
• EU Regulatory Notice
• Quick Installation Guide
• 2 x M.2 Screw/Standoff Sets
• SATA Cable
• Wi-Fi Antenna
• I/O Shield
• Width 244 mm
• Length 244 mm

Key Features

• RDIMM Memory Supported No
• RDIMM Memory Required No
• Wireless Network Yes
• Motherboard Width 244 mm
• Motherboard Height 244 mm
• mSATA Supported No
• U.2 Supported No
• Memory Channel Dual
• On-board Audio Type 7.1
• Number of SATA Ports 4 port(s)
• Number of USB Ports 6 port(s)
• USB 3.0 Support Yes
• Multi GPU Support No
• VGA Connection No
• DVI Connection No
• HDMI Connection Yes
• DisplayPort Connection Yes
• Motherboard Form Factor mATX
• Motherboard (EPS) Power Connectors 2 x 8-Pin
• Motherboard Chipset Intel B760
• Thunderbolt No
• Motherboard Model MSI B760M GAMING PLUS WIFI
• WiFi Speed 2400 Mbps
• USB 3.1 Support Yes
• Internal USB3.0 Header Yes
• M.2 Support Yes
• On-board RGB Control MSI Mystic Sync
• RGB Header Type 3-Pin ARGB
• Addressable RGB Yes
• Internal USB Type-C Header Yes
• Power Requirement (auto) 60 W
• Max Memory Speed Supported (Non-overclocked) 5600 MT/s
• Max Memory Speed Supported (overclocked) 6800 MT/s
• CPU Power Pins (female) 16
• Total M.2 Slots 2
• Maximum NVMe M.2 ports 2
• Maximum SATA M.2 ports 1
• SATA ports 4
• No. of front USB2.0 ports supported 4
• No. of front USB3.0 ports supported 4
• No. of front USB-C ports supported 1

Item Details

• Manufacturer MSI
• Manufacturer Code B760M GAMING PLUS WIFI
• EAN 4711377154017
