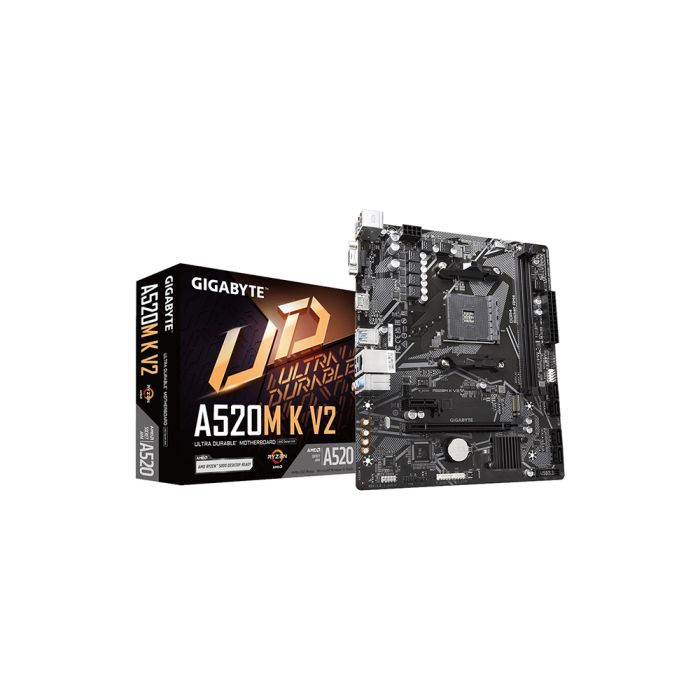

main product photo

Gigabyte A520M K v2, AM4, DDR4, Micro ATX, Motherboard

£52.99 £59.99
SKU
SK-21747
Availability: Out of stock
  • Gigabyte A520M K v2
  • Form Factor: mATX
  • Socket: AM4
  • Memory: DDR4 (Max: 64GB)
  • Storage: 1 x M.2, 4 x SATA
  • USB: 6 port(s)
More Info
Add to Compare
  • CPU Socket Socket AM4
  • CPU Brand AMD
  • Installed Processors (Max) 0 (1)
  • Supported Processor Manufacturer AMD
  • Supported Processors AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/
  • AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 and Ryzen 3000 G-Series Processors
  • 64-bit Support Yes
  • Socket AM4
  • Rear Panel I/O Ports
  • USB Ports 4 x USB 3.0
  • 2 x USB 2.0
  • HDMI Port 1 x HDMI 2.1
  • VGA Port 1 x D-Sub
  • Keyboard/Mouse Combo Port 1 x PS/2
  • RJ-45 Ports 1 x RJ-45
  • Audio Line In Ports 1 x 3.5mm Jack
  • Audio Line Out Ports 1 x 3.5mm Jack
  • Microphone In Port 1 x 3.5mm Jack
  • Internal I/O Connectors
  • SATA Connectors 4 x SATA III
  • USB Connectors 1 x USB 3.0 header (supports 1 port)
  • 2 x USB 2.0 headers (supports 4 ports)
  • Speaker 1 x Speaker header
  • Front Panel Connectors 1 x Front Panel
  • 1 x Front Audio
  • Cooling Fan Support 1 x CPU fan header
  • 1 x System fan header
  • Chassis Intrusion Connector 1 x Chassis Intrusion header
  • TPM Header 1 x TPM header (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • Power Connector Port 1 x 24-pin ATX
  • 1 x 8-pin EPS
  • Other Connectors 1 x M.2 slot, Socket 3, M key, Type 2280 (PCIe Gen3 or SATA)
  • Memory Bus Speed Up to 5100 MHz
  • Memory Type DDR4
  • Maximum RAM 64 GB
  • Memory Slot 2 x DIMM
  • Northbridge AMD A520
  • RAID Supported Yes
  • RAID Format RAID 0, 1, 10
  • SATA Supported Yes
  • Number of PCI Express Slots 1 x PCI Express 3.0 x16 slot
  • 1 x PCI Express 3.0 x1 slot
  • Graphics Device
  • Integrated Graphics Supported Yes
  • Integrated Sound Realtek
  • Integrated Network Realtek
  • Network Speeds Supported Up to 1 Gbps
  • Wireless LAN No
  • Bluetooth No
  • Operating Systems Supported Microsoft Windows 11
  • Jumpers 1 x Clear CMOS
  • Software Included (may be trial or restricted) Yes
  • Drivers Yes
  • Form Factor mATX Motherboard
  • Width 198 mm
  • Length 233 mm
  • Key Features
  • RDIMM Memory Supported No
  • RDIMM Memory Required No
  • Wireless Network No
  • Motherboard Width 198 mm
  • Motherboard Height 233 mm
  • mSATA Supported No
  • U.2 Supported No
  • Main Colour Black
  • Memory Channel Dual
  • On-board Audio Type 7.1
  • Number of SATA Ports 4 port(s)
  • Number of USB Ports 6 port(s)
  • USB 3.0 Support Yes
  • Multi GPU Support No
  • VGA Connection Yes
  • DVI Connection No
  • HDMI Connection Yes
  • DisplayPort Connection No
  • Motherboard Form Factor mATX
  • Motherboard (EPS) Power Connectors 4+4-Pin
  • Motherboard Chipset AMD A520
  • Thunderbolt No
  • Motherboard Model Gigabyte A520M K V2
  • USB 3.1 Support No
  • Internal USB3.0 Header Yes
  • M.2 Support Yes
  • On-board RGB Control None
  • RGB Header Type None
  • Addressable RGB No
  • Internal USB Type-C Header No
  • Power Requirement (auto) 60 W
  • Max Memory Speed Supported (Non-overclocked) 3200 MT/s
  • Max Memory Speed Supported (overclocked) 5100 MT/s
  • CPU Power Pins (female) 8
  • Total M.2 Slots 1
  • Maximum NVMe M.2 ports 1
  • Maximum SATA M.2 ports 1
  • SATA ports 4
  • No. of front USB2.0 ports supported 4
  • No. of front USB3.0 ports supported 2
