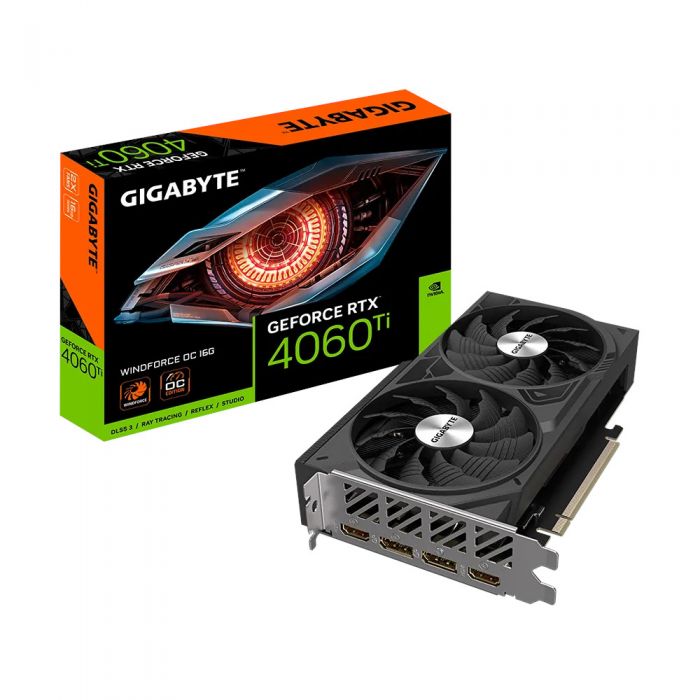

Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC 16GB GPU

Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC 16GB GPU - GV-N406TWF2OC-16GD

Features:

• New Streaming Multiprocessors
  Up to 2x performance and power efficiency
• Fourth-Gen Tensor Cores
  Up to 4x performance with DLSS 3 vs. brute-force rendering
• Third-Gen RT Cores
  Up to 2x ray tracing performance
• Cutting-Edge GPUs
  NVIDIA Ada Lovelace architecture
• Realistic and Immersive Graphics
  Dedicated Ray Tracing Cores
• AI-Accelerated Performance
  NVIDIA DLSS 3
• Game-Winning Responsiveness
  NVIDIA Reflex low-latency platform
• Built for Live Streaming
  NVIDIA Encoder
• AI-Enhanced Voice and Video
  RTX Video Super Resolution and NVIDIA Broadcast
• Fast-Track Your Creativity
  NVIDIA Studio
• Performance and Reliability
  Game Ready and Studio Drivers
• WINDFORCE COOLING SYSTEM
  The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
• ALTERNATE SPINNING
  Reduce the turbulence of adjacent fans and increase airflow pressure.
• 3D ACTIVE FAN
  The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
• UNIQUE BLADE FAN
  The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
• GRAPHENE NANO LUBRICANT
  Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
• SCREEN COOLING
  Extended heatsink allows air to pass through, providing better heat dissipation.
• HEAT PIPES DIRECT TOUCH
  The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
• PROTECTION METAL BACK PLATE
  The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
• ULTRA DURABLE
  Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
• FRIENDLY PCB DESIGN
  Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications:

• Graphics Processing
  GeForce RTX™ 4060 Ti (16GB)
• Core Clock
  2565 MHz (Reference Card: 2535 MHz)
• CUDA® Cores
  4352
• Memory Clock
  18 Gbps
• Memory Size
  16 GB
• Memory Type
  GDDR6
• Memory Bus
  128 bit
• Card Bus
  PCI-E 4.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=201 W=120 H=41 mm
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  500W
• Power Connectors
  8 pin*1
• Output
  DisplayPort 1.4a*2
  HDMI 2.1a*2
• Accessories
  Quick guide
