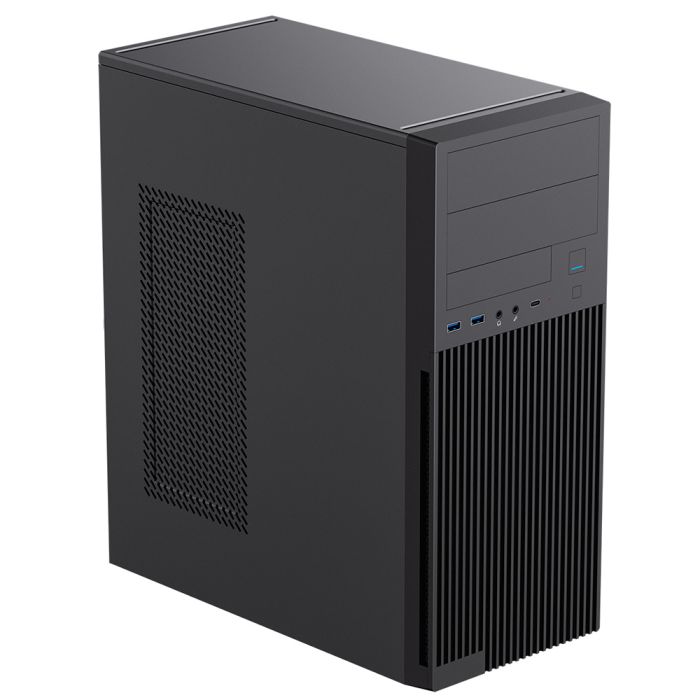

CIT Academy Mid-Tower Office PC Case (USB C) + 500W PSU
£41.99
£44.99
SKU
SK-21545
Availability:
In stock
- Stylish ATX PC - The Academy is one of the smallest ATX computer cases with a featured front panel design. The modern simplicity and effortless design combine form and function. Not only is the Academy stylish but the overall design aids in cooling your high-end components for a stable operation of your system. Achieve a high-end look and top performance all in one with this stunning chassis.
- Chassis Material - Made from SPCC & SGCC thickened steel which provides a solid, stable and durable foundation. The Academy is reliable choice.
- Security - With a four security features the Academy is the perfect anti-theft device with padlock loop, kensington, chassis intrusion switch & alarm switch as optional keeping your chassis safe.
- I/O Interface - The I/O is designed at the front includes power & reset buttons, mic/audio jacks, 2 x USB 3.0 and a USB Type-C.
- High Compatibility - The compact unique interior chassis design with seven independent PCIe expansion slots. The modular design which saves space and makes it easy to build your perfect system. The greater compatibility that the Academy offers ensures you can build a high-end system with room for a CPU cooler with a Max. height of 145mm and a GPU with a Max. length of 295mm.
- Storage Capacity - Build a high-performance PC with room for four internal hard drive options, 3 x 2.5" SSDs and 1 x 3.5" HDDs and three external hard drive options, 2 x 5.25" ODDs and 1 x 3.5".
- Cooling System - The design of the Academy is an impressive one and build a high performing cooling system with the capability to install a total of three fans. The set up of the Academy makes it the perfect chassis for heat dissipation to help keep all high-end components cool for a stable operation of your system.
- Power Supply Installed - The Academy includes a 500W Power Supply, specifications of the power supply are further down.
Specifications
- Chassis Dimensions (Excluding Fascia / Panels): (W) 175 x (H) 410 x (D) 344mm
- 1 x 80mm Rear Black Fan Included:
- Fan Powered Via: 3pin
- Additional Chassis Specifications:
- Motherboard Max. Size: (W) 305 x (D) 244mm
- PSU Max. Length: 210mm
- GPU. Max Length: 320mm or 295mm (With front fans installed)
- I/O Ports: 2 x USB3.0 & 1 x USB Type C
- CiT-500 Power Supply Installed:
- Vac ~ Input:
- Voltage: 230V
- Current: 5A
- Frequency: 50Hz
- Rail: Max. DC Output
- + 3.3V: 15A
- + 5V: 15A
- + 12V: 34A
- -12V: 0.5A
- + 5Vsb: + 5Vsb
- Max. Output Wattage: 500W
- PSU Connectors:
- 20+4 Pin Main Connectors: x 1
- 4+4 Pin 12V Connectors: x 1
- SATA Connectors: x 3
- 4-Pin Molex Connectors: x 2
- PSU Connector Length: 400mm
Case Specifications
- Form Factor: Midi Tower
- Motherboard Support: ATX, Micro ATX, Mini ITX
- PSU Support: Standard ATX
- PSU Location: Top
- Gaming Case: No
- Water Cooling: Not Water Cooling Ready
- Body Material: 0.4mmSPCCSGCC
- Front Bezel Material: ABS
- Side Panel: Vented
- Internal Cable Management Depth: 8mm
- External Bays: 2 x 5.25” External
- 1 x 3.5” External
- Internal Bays: 1 x 3.5” Internal
- 3 x 2.5” Internal
- Drive Bay Notes: External 3.5" can be used for HDD
- Expansion Slots: 7 x Full Size
- Cooling Front: Space For 2 x 120mm, 2 x 92mm & 2 x 80mm Fans
- Cooling Top: None
- Cooling Rear: Space For 1 x 80mm or 92mm Fans (1 x 80mm Black Fan Included)
- Cooling Side: None
- Cooling Bottom: None
- IO Ports: 1 x HD Audio
- 1 x Microphone
- GPU Max Length: 295mm
- CPU Cooler Maximum Height: 145mm
- Front Bezel Colour: Black
- Body Colour: Black
- System Cabinet Features:
- PSU Included: Yes
General Specifications
- Manufacturer Part Number: CIT-ACADEMY
- EAN Number: 5055492415370
- Has Mains Plug: No
- Colour: Black
- What's In The Box: Case
- Accessories
- Unit (Product) Dimensions (mm): 175mm x 410mm x 371mm (W x H x D)
- Packaging Dimensions (mm): 225mm x 421mm x 445mm (W x H x D)
- Net Weight (KGs): 3.8 KGs
- Gross Weight (KGs): 4.4 KGs
