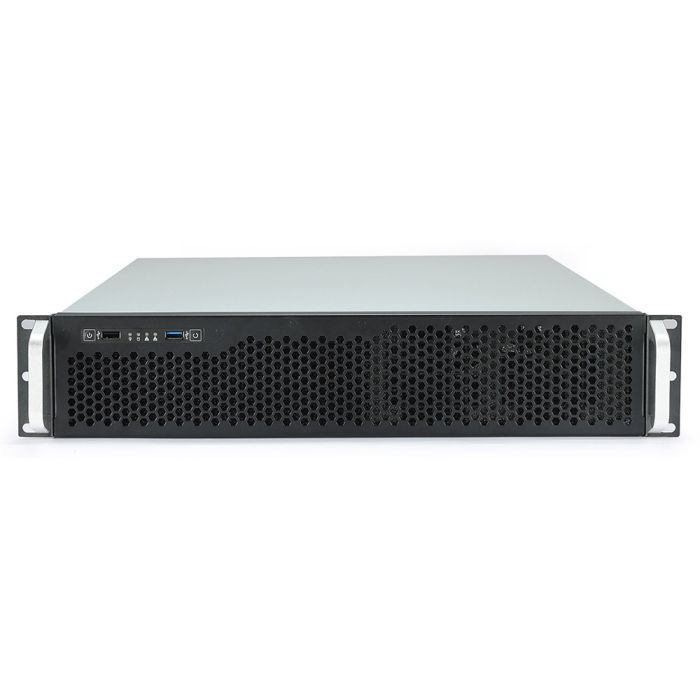

main product photo

Codegen 2U Rackmount 600mm Deep 2 x 80mm HDB and 3 x HDB PWM Fans

£110.00
SKU
SK-21932
Availability: Out of stock
  • Codegen rackmount server chassis 2U 600mm depth is a stable, safe, high quality, durable 2U chassis designed to be mounted in a standard server rack. Installed with five Hydraulic Bearing fans & three of the pre-installed fans include PWM functionality, which can deliver an exceptional thermal performance you can rely on.
  • The 600mm rackmount comes with 2 x 80mm HDB fans & 3 x 80mm PWM HDB fans. The interior supports ATX, Micro-ATX and Mini -ITX Motherboards and up to 6 x 3.5” or 4 x 3.5" & 2 x 2.5" and four low profile and three standard PCIe expansion slots, to accommodate your server systems.
    • More Info
Add to Compare
  • Specifications
  • Form Factor:    2U Rackmount
    Rackmount Dimensions - Excluding Handles:    (W) 430 x (H) 89.5 x (D) 600mm
    Rackmount Dimensions - Including Handles:    (W) 464 x (H) 89.5 x (D) 635mm
    2 x 80mm HDB Front Fans:
    Powered Via:    Molex
    3 x 80mm PWM HDB Middle Fans:
    Powered Via:    4pin PWM Fan Connector
    Additional Chassis Details:
    Control Indicator:    1 x Power Switch & 1 x Reset Switch | 1 x LED (Power), 1 x LED (HDD) & 2 x LAN LED
    PSU Location:    Front Left
    PSU Max. Length:    170mm
    Motherboard Max. Size:    (W) 305 x (D) 244mm
  • 2U RackMount Case - 600mm deep & 430mm wide (Exc. handles). 2U rackmounts are suitable for mid-size servers and offer a great balance between size & performance. They can be used in backup servers, scale-out infrastructure and high-performance computing.
  • Server Motherboard Support - Supports ATX, Micro-ATX and Mini ITX Motherboards.
  • Optimal Cooling - Five pre-installed fans are including inside the 2U 600 with 2 x 80mm HDB fans & 3 x 80mm PWM HDB fans are included with automatic speed control of the Motherboard through the 4 Pin PWM fan cable interface, which can determine the speed according to the temperature readings from various parts of the PC. This further helps to keep your system as quiet as possible, using only as much fan power as needed.
  • HDD Capacity Support - Hard drive mounting support options includes up 6 x 3.5" HDDs or 4 x 3.5" HDDs & 2 x 2.5” SSDs.
  • Expansion - The 2U 600 includes 7 expansion slots, 3 standard & 4 low-profile expansion slots. Supports one full height GPU both are movable with high flexibility.
  • GPU Bracket - 2U 600 designed with an intelligent Graphics card bracket to combat GPU sag and provide additional support.
  • GPU's - Supports 1 x low-profile or full-height GPU or change to all low-profile with ATX Motherboard, it can support up to 7 x low-profile GPUs. The 2U includes 6 x PCIe brackets in the accessory box.
  • LEDs for Server Functions - LEDs to indicate the following: Machine state (Power LED x 1 green), HDD Activity (HDD LED x 1 red) & Network Interface Controller (LAN NIC LED x 2 yellow).
  • Case Specifications
  • Form Factor:    Rackmount
    Motherboard Support:    ATX, Micro ATX, Mini ITX
    PSU Support:    Standard ATX
    PSU Location:    Front
    Gaming Case:    No
    Water Cooling:    Not Water Cooling Ready
    Body Material:    1.0mmSGCC
    Front Bezel Material:    Metal
    Side Panel:    Metal
    External Bays:
    Internal Bays:    6 x 3.5” Internal
    2 x 2.5” Internal
    Drive Bay Notes:    6 x 3.5" HDDs or 4 x 3.5" HDDs & 2 x 2.5 SSDs
    Expansion Slots:    3 x Full Size
    4 x Half-Height
    Cooling Front:    Space For 2 x 80mm Fans (2 x 80mm HDB Black Fans Included)
    Cooling Top:    None
    Cooling Rear:    None
    Cooling Side:    Space For 3 x 80mm Fans (3 x 80mm PWM HDB Black Fans Included - Middle)
    Cooling Bottom:    None
    Fan Controllers:    0 Fan Controllers, controlling up to
    0 fans in total
    IO Ports:    1 x USB 3.0
    1 x USB 2.0
    GPU Max Length:    280mm
    CPU Cooler Maximum Height:    65mm
    Front Bezel Colour:    Black
    Body Colour:    Bare Metal
    System Cabinet Features:
    PSU Included:    No
  • General Specifications

  • Manufacturer Part Number:    2U600
    EAN Number:    5055492415233
    Has Mains Plug:    No
    Colour:    Black / Bare Metal
    What's In The Box:    RackMount
    Screw Pack
    Half Height Blanking Plates
    Manual
    Unit (Product) Dimensions (mm):    464mm x 89.5mm x 635mm (W x H x D)
    Packaging Dimensions (mm):    542mm x 168mm x 684mm (W x H x D)
    Net Weight (KGs):    8.1 KGs
    Gross Weight (KGs):    9.5 KGs
  •
