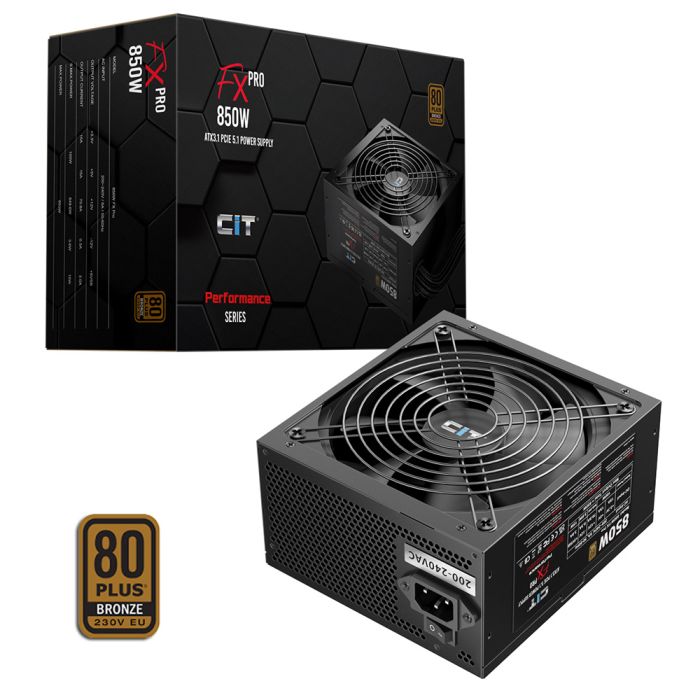

CIT FX Pro Black ATX 3.1 PCIe 5.1 850W 80 Plus Bronze Power Supply
£58.99
£65.00
SKU
SK-21756
Availability:
Out of stock
- CIT FX Pro Black ATX 3.1 PCIe 5.1 850W 80 Plus Bronze Power Supply
- PSUCIT850FX, 5055492415974
- ATX 3.1 & PCIe 5.1 Compatible - The Performance Series power supplies are ATX 3.1 compliant meeting the incredible high standards for reliability and power efficiency, guarantees a high level of quality and performance. The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards, such as the NVIDIA GeForce RTX 40 Series. Max. Power output up to 450W.
- Note: Please check max power draw of your GPU before buying.
- Not suitable for RTX 4090 or 5090.
- ATX 3.1 vs ATX3.0 - The new range is ATX3.1 compliant deliver some key upgrades compared to ATX3.0. Features a shorter hold-up time, resulting in a small improvement in the power supplies efficiency. The 12V-2x6 connector is designed with longer conductor terminals for improved conductivity. The shorter sense pins allow your GPU to now shut off if the connection comes loose.
- 80 Plus Bronze Certification - The FX Pro Performance Series Range are 80 Plus Bronze certified achieving an efficiency of up to 88% at a load of 50%.
- Power - The FX Pro Performance Series Range offers some next level power, the 12V output is capable of drawing 850W. The 80 Plus 230V EU Bronze efficiency enables your high-end components to work to their full potential.
- Japanese TK Main Capacitor - With a Japanese TK main capacitor included the FX Pro Performance Series Range delivers a reliable life expectancy and quality assurance.
- 140mm Black Cooling Fan - An ultra silent 140mm cooling fan ensures the FX Pro Performance Series Range delivers not only silent cooling but cooling that is effective guaranteeing a power supply that will run safely.
- Hardware Protection - Top tier circuit protections keep your build running strong and your hardware safe - OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) & UVP (Under Voltage Protection).
- Warranty - The FX Pro Performance Series comes with 2-year warranty.
- Efficiency: 85% @ 20% Load | 88% @ 50% Load | 85% @ 100% Load
- 20 + 4pin Motherboard: 570mm
- +12V CPU (To 1st Connector): 635mm
- +12V CPU (To 2nd Connector): 140mm
- PCI-e (To 1st Connector): 590mm
- PCI-e (To 1st Connector): 140mm
- PCI-e 5.x: 650mm
- Peripheral Cable 1 (To 1st Connector): 470mm (SATA)
- Peripheral Cable 1 (To 2nd Connector): 150mm (SATA)
- Peripheral Cable 1 (To 3rd Connector): 150mm (Molex)
- Peripheral Cable 2 (To 1st Connector): 480mm (SATA)
- Peripheral Cable 2 (To 2nd Connector): 150mm (SATA)
- Peripheral Cable 2 (To 3rd Connector): 150mm (Molex)
- AC INPUT: 200-240VAC 6A 50-60HZ
- DC Output Max: 850W
- +3.3V 15A, +5V 15A, +12V1 70.8A, -12V 0.3A, +5VSB 3A
- 12V-2x6 Connectors: x 1
- 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 2
- SATA Connectors: 4
- 4-Pin Molex Connectors: 2
- 6+2 Pin PCI-e Connectors: 2
- Dimensions: 150mm x 86mm x 160mm (W x H x D)
- Input Voltage: 200-240VAC
- Input Current: 6A
- Input Frequency Range: 50-60HZ
- PFC: Active PFC
- Power Good Signal: 100-150ms
- Hold Up Time: 11ms at 100 Percent Load
- Efficiency: 85%
- MTBF: 100,000
- Protection: OVP / UVP / OPP / SCP / OCP
- Power: 850W
- Operation Temperature: 0-40 Degree Celsius
- Safety: CE / UKCA / FCC / CB / RoHS
- Cooling: 140mm Black Fan
- Noise: Less Than Or Equal To 35dBA - Measured at 1 Meter
- 80 Plus Certified: Yes - 80 Plus Bronze
- Manufacturer Part Number: 850W FX PRO
- EAN Number: 5055492415974
- Has Mains Plug: No
- Colour: Black
- What's In The Box: PSU
- Manual
- Cable Ties
- Screws
- Unit (Product) Dimensions (mm): 150mm x 86mm x 160mm (W x H x D)
- Packaging Dimensions (mm): 280mm x 190mm x 120mm (W x H x D)
- Net Weight (KGs): 1.86 KGs
- Gross Weight (KGs): 2.1 KGs
