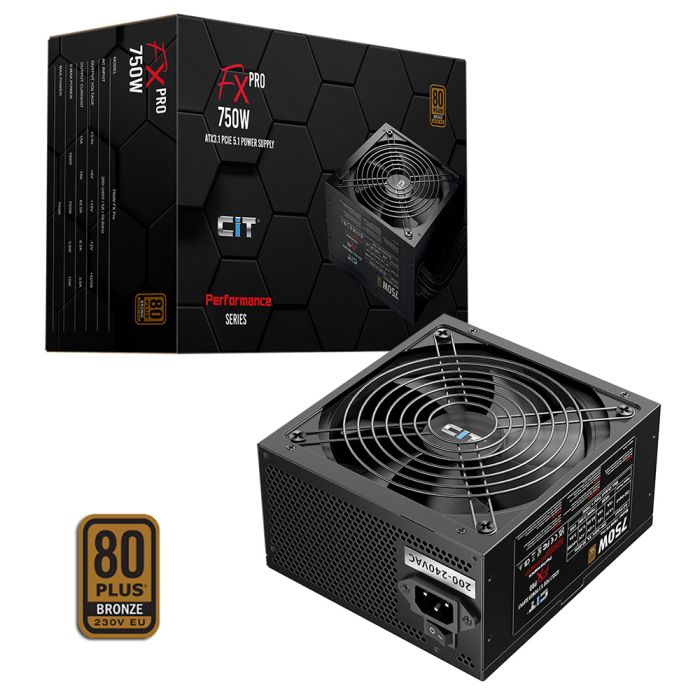

CIT FX Pro Black ATX 3.1 PCIe 5.1 750W 80 Plus Bronze Power Supply
£49.99
£59.99
SKU
SK-21767
Availability:
In stock
- CIT FX Pro Black ATX 3.1 PCIe 5.1 750W 80 Plus Bronze Power Supply
- PSUCIT750FX
- 5055492415950
- ATX 3.1 & PCIe 5.1 Compatible - The Performance Series power supplies are ATX 3.1 compliant meeting the incredible high standards for reliability and power efficiency, guarantees a high level of quality and performance. The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with the latest graphics cards, such as the NVIDIA GeForce RTX 40/50 Series. Max. Power output up to 450W.
- Note: Please check max power draw of your GPU before buying.
- Not suitable for RTX 4090 or 5090.
- ATX 3.1 vs ATX3.0 - The new range is ATX3.1 compliant deliver some key upgrades compared to ATX3.0. Features a shorter hold-up time, resulting in a small improvement in the power supplies efficiency. The 12V-2x6 connector is designed with longer conductor terminals for improved conductivity. The shorter sense pins allow your GPU to now shut off if the connection comes loose.
- 80 Plus Bronze Certification - The FX Pro Performance Series Range are 80 Plus Bronze certified achieving an efficiency of up to 88% at a load of 50%.
- Power - The FX Pro Performance Series Range offers some next level power, the 12V output is capable of producing 750W of power. The 80 Plus 230V EU Bronze efficiency enables your high-end components to work to their full potential.
- Japanese TK Main Capacitor - With a Japanese TK main capacitor included the FX Pro Performance Series Range delivers a reliable life expectancy and quality assurance.
- 140mm Black Cooling Fan - An ultra silent 140mm cooling fan ensures the FX Pro Performance Series Range delivers not only silent cooling but cooling that is effective guaranteeing a power supply that will run safely.
- Hardware Protection - Top tier circuit protections keep your build running strong and your hardware safe - OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) & UVP (Under Voltage Protection).
- Warranty - The FX Pro Performance Series comes with 2-year warranty.
Specifications
- Efficiency: 85% @ 20% Load | 88% @ 50% Load | 85% @ 100% Load
- 20 + 4pin Motherboard: 570mm
- +12V CPU (To 1st Connector): 640mm
- +12V CPU (To 2nd Connector): 140mm
- PCI-e (To 1st Connector): 600mm
- PCI-e (To 2nd Connector): 148mm
- PCI-e 5.x: 640mm
- Peripheral Cable 1 (To 1st Connector): 480mm (SATA)
- Peripheral Cable 1 (To 2nd Connector): 150mm (SATA)
- Peripheral Cable 1 (To 3rd Connector): 150mm (Molex)
- Peripheral Cable 2 (To 1st Connector): 480mm (SATA)
- Peripheral Cable 2 (To 2nd Connector): 150mm (SATA)
- Peripheral Cable 2 (To 3rd Connector): 150mm (Molex)
PSU Specifications
- AC INPUT: 200-240VAC 5A 50-60HZ
- DC Output Max: 750W: +3.3V 15A, +5V 15A, +12V1 62.5A, -12V 0.3A, +5VSB 3A
Connectors
- 12V-2x6: 1
- 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 2
- SATA Connectors: 4
- 4-Pin Molex Connectors: 2
- 6+2 Pin PCI-e Connectors: 2
Detailed Specifications
- Dimensions: 150mm x 86mm x 160mm (W x H x D)
- Input Voltage: 200-240VAC
- Input Current: 5A
- Input Frequency Range: 50-60HZ
- PFC: Active PFC
- Power Good Signal: 100-150ms
- Hold Up Time: 11ms at 100 Percent Load
- Efficiency: 85%
- MTBF: 100,000
- Protection: OVP / UVP / OPP / SCP / OCP
- Power: 750W
- Operation Temperature: 0-40 Degree Celsius
- Safety: CE / UKCA / FCC / CB / RoHS
- Cooling: 140mm Black Fan
- Noise: Less Than Or Equal To 35dBA Measured at 1 Meter
- 80 Plus Certified: Yes - 80 Plus Bronze
General Specifications
- Manufacturer Part Number: 750W FX PRO
- EAN Number: 5055492415950
- Has Mains Plug: No
- Colour: Black
- What's In The Box: PSU, Manual, Cable Ties & Screws
- Unit (Product) Dimensions (mm): 150mm x 86mm x 160mm (W x H x D)
- Packaging Dimensions (mm): 280mm x 190mm x 120mm (W x H x D)
- Net Weight (KGs): 1.74 KGs
- Gross Weight (KGs): 2 KGs
