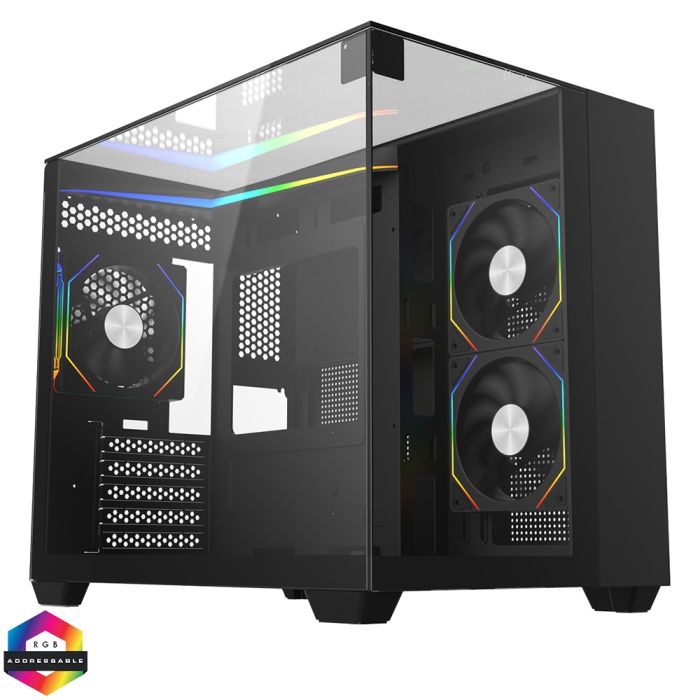

CIT Eclipse MATX Gaming Case Tempered Glass ARGB Fans & Strip Light

Key Features

• Showcase Your Gaming PC - The CiT Eclipse finished in all black and is constructed with three sided tempered glass, 4mm tempered glass front, top and side panels with 30% tint this stunning design gives the chassis a standout and elegant look. Allows for a 270-degree side visibility with unreal display potential the Eclipse offers an uninterrupted view of all your gaming hardware.
• Dual Chamber Layout - Different from traditional computer cases the Eclipse is designed using a dual chamber layout which provides plenty of space for your hardware, good airflow & ventilation, cable management and guarantees you can create a beautiful build. The dual chamber design allows you to situate your power supply, hard drives and cables in the rear chamber freeing up the main chamber for your fan and radiator mounting points creating an unrestricted view of your components that matter.
• Sleek & Sharp Cooling Fans - Gain style and thermal power with the three pre-installed fans, this elegant stylish looking hydraulic bearing fan with an aluminium centre it is the perfect addition, the ARGB lighting is vibrant and stunning and with an 800 to 1600 RPM PWM control range. The Eclipse makes it easy to equip your PC with silent cooling that can be adjusted for the perfect balance in airflow that your system needs.
• Fan Frame - A visually stunning cooling fan complements the Eclipse and adds to the aesthetic appeal of this impressive Micro. The Eclipse fan oozes style and class with 4 thin LED strips, two on both sides of the fan blade and two on the top and bottom of the fan frame and finished off with a touch of infinity mirror on both sides of the frame, the infinity mirror follows the front ARGB lighting strips in a top and bottom pattern that creates a 3D indented look.
• Fan Controller Included - A PWM hub is included inside the Eclipse which allows you to add up to 6 case fans and is powered directly from your power supply via SATA. You can access it using the LED button and it's connected to the Motherboard using a single cable - you can setup without any additional cables.
• PWM Fan Control - The hub can be connected to the CPU fan interface on your chosen Motherboard to access temperature readings. An increased CPU temperature increases the fan speed automatically and swiftly cools the system down. Conversely when the CPU temperature decreases the fan automatically slows reducing the overall noise.
• Motherboard Software - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.
• ARGB LED Strip - The Eclipse features an angled ARGB strip at the back of the chassis that syncs with the pre-installed cooling fans and can be synced with the Motherboard creating a beautiful aesthetic.
• Micro-ATX Housing - Standing at 374mm high, 286mm wide and 428mm deep the Eclipse is compatible with a wide range of components, with 415mm of clearance for GPUs and it can facilitate CPU coolers up to 170mm tall. Additionally the I/O panel located at the top possesses two USB3.0 ports, HD-Audio, Mic & LED / Reset button. There are five expansion slots on the rear panel for PCIe devices.

Specifications

• Chassis Dimensions (Excluding Fascia / Panels): (W) 286 x (H) 356 x (D) 428mm
• Motherboard Supported Radiator(s): 120mm, 240mm & 280mm
• Bottom Supported Radiator(s): 120mm & 240mm & 360mm
• Rear Supported Radiator(s): 120mm
• CiT Eclipse Infinity PWM ARGB Fan Specification:
• Fan Frame Colour: Black
• Fan Blade Qty / Colour: 9 / Black
• LED Qty / Type: 16 / ARGB
• Bearing Type: Hydraulic Bearing
• Fan Speed: PWM 800 - 1600RPM
• Max. Air Flow (Max.): 47.3CFM
• Max. Static Air Pressure: 1.6mm-H2O
• Noise Level (Max.): 25 dBA
• Cable Length: 600mm
• Accessories: Screws
• Connectors: 3pin (Addressable) AURA Connector / 3pin (Addressable) AURA (Male) Link Connector /
• 4pin PWM Power Connector / 3pin Male Splitter Cable
• Rated Voltage: 12V
• Rated Current (Max.): 0.25A
• Rated Input Power (Max.): 5V
• Test Voltage: 12V
• Start Voltage: 12V
• M.T.B.F.: 30,000 Hours
• 3 x 120mm CiT Eclipse Infinity PWM ARGB Fans Included:
• Fan Powered Via: 4pin PWM
• Fan LEDs Powered Via: 3pin AURA
• Fan Controller Support:
• Fan Controller Included: Yes
• Fan Controller Power Via: SATA Connector
• LED Controller: Yes
• Fan Power Connector: 3 or 4pin
• LED Power Connector: 3pin AURA
• Fan Control Via: LED Button or MB Sync
• Supported Qty of Fans (Max.): 6
• Supported Qty of LEDs (Max.): 6
• Motherboard Max. Size: (W) 244 x (D) 247mm
• PSU Max. Length: 220mm
• PSU Location: Rear Bottom
• Cable Management: 45mm (Front) & 95mm (Rear Top)
• HD Audio Ports: Combined Headphone / Mic
• Dust Filters: 1 x Bottom

Case Specifications

• Form Factor: Micro ATX
• Motherboard Support: Micro ATX, Mini ITX
• PSU Support: Standard ATX
• PSU Location: Bottom
• Gaming Case: Yes
• Water Cooling: Water Cooling Ready!
• Body Material: 0.7mmSPCC
• Front Bezel Material: 30 Percent Tinted Tempered Glass
• Side Panel: 30 Percent Tinted Tempered Glass
• Internal Cable Management Depth: 95mm
• 2 x 3.5” Internal
• 3 x 2.5” Internal
• Drive Bay Notes: 1 x 3.5" shares 2 x 2.5" & 1 x 3.5" shares 1 x 2.5"
• Expansion Slots: 5 x Full Size
• Cooling Front: None
• Cooling Top: None
• Cooling Rear: Space For 1 x 120mm Fan (1 x 120mm CiT Eclipse Infinity ARGB Fan Included)
• Cooling Side: Space For 2 x 120mm or 2 x 140mm Fans (2 x 120mm CiT Eclipse Infinity ARGB Fans
• Included)
• Cooling Bottom: Space For 3 x 120mm Fans
• Fan Controllers: 1 Fan Controllers, controlling up to
• 6 fans in total
• IO Ports: 2 x USB 3.0
• 1 x HD Audio
• GPU Max Length: 415mm
• CPU Cooler Maximum Height: 170mm
• Front Bezel Colour: Black & Smoked Glass
• Body Colour: Black
• System Cabinet Features:
• PSU Included: No

General Specifications

• Manufacturer Part Number: CIT-ECLIPSE-ARGB
• EAN Number: 5055492415165
• Has Mains Plug: No
• Colour: Black
• What's In The Box: Case
• Accessories
• Manual
• Unit (Product) Dimensions (mm): 286mm x 374mm x 428mm (W x H x D)
• Packaging Dimensions (mm): 365mm x 525mm x 425mm (W x H x D)
• Net Weight (KGs): 6.9 KGs
• Gross Weight (KGs): 8.8 KGs
