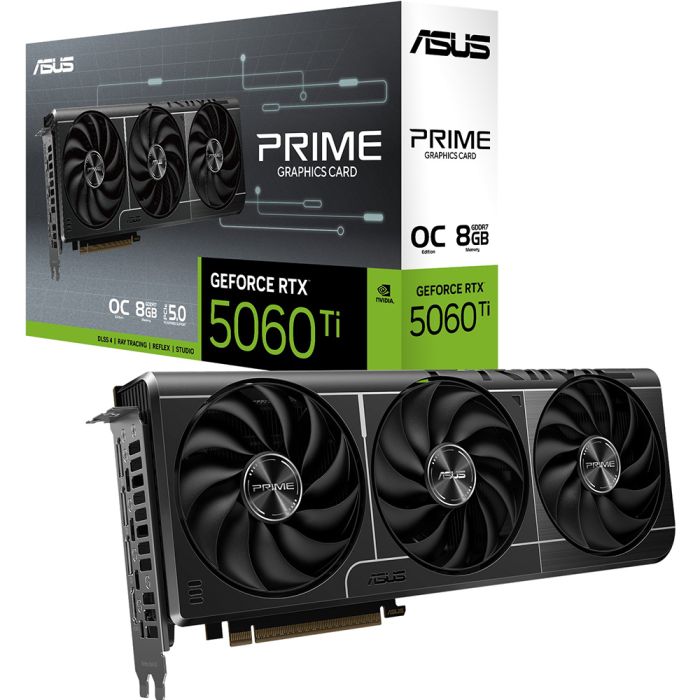

Asus PRIME RTX5060 Ti OC, PCIe5, 8GB DDR7, HDMI/3xDP, 2647MHz Clock

GPU

• Chipset Manufacturer NVIDIA
• Chipset Model Name GeForce RTX
• Chipset Model Number 5060 Ti
• Chipset Additional Information Prime OC
• Boost Chip Clock 2617 MHz
• Number of Cores 4608
• Graphics Core CUDA

Memory

• Memory Size 8192 MB
• Memory Clock 28 Gbps
• Memory Type GDDR7
• Memory Width 128 bit
• Memory Bandwidth 448 GB/s

Interfaces/Ports

• Video Card Bus Type PCI Express
• Video Card Bus Version 5.0 x8
• HDMI Port 1 x HDMI 2.1b
• DisplayPort 3 x DisplayPort 2.1b

Resolution

• Multiple Monitor Support (Max) Yes (4)
• Maximum Resolution 7680 x 4320
• System Requirements
• System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

• Power Connector 1 x 8-pin PCIe
• Power Consumption 180 W
• Recomended Power Supply 550 W

Physical

• Form Factor Graphics Card
• In The Box Graphics Card
• Speedsetup Manual
• ASUS Velcro Hook & Loop
• Thank You Card
• Width 50 mm (2.5 slot)
• Depth 304 mm
• Height 120 mm

Warranty

• Warranty 3 Years direct with ASUS

Key Features

• Interface Type PCI Express 5.0 x8
• Config Gaming x8 (CB/CCL) Yes
• Graphics Memory Type GDDR7
• Main Colour Black
• VGA Connection No
• DVI Connection No
• HDMI Connection Yes
• Graphics Usability Gaming
• DisplayPort Connection Yes
• Direct X Support Direct X 12
• Cooler Type Dynamic Fan Inc. 0dB Mode
• Low Profile No
• NVIDIA GeForce RTX 5060 Ti
• PCIe Pin Type 6+2-Pin
• Cooling Technology Dynamic Fan Inc. 0dB Mode
• VR Ready NVIDIA
• GPU Length 304 mm
• Card Width 3
• Power Requirement (auto) 180 W
• GPU Power (TDP) 180 W
• Graphics card count 1
• PCI Express Power Pins (female) 8
• PCIe Physical Slot required 16
• 12VHPWR 16-pin Connector No
• AI Ready Yes

Graphics Device

• G-Sync Yes
