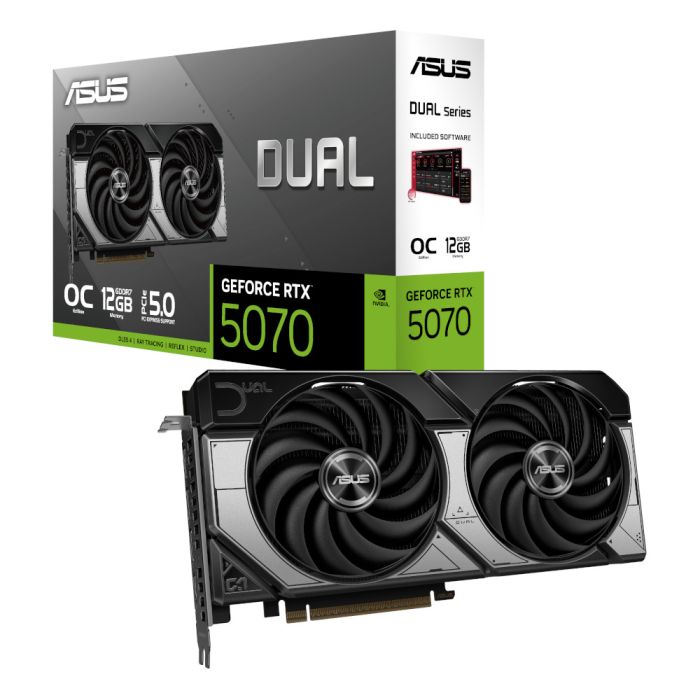

Asus DUAL RTX5070 OC, PCIe5, 12GB DDR7, HDMI + 3xDP, 2572MHz

Asus DUAL RTX5070 OC, PCIe5, 12GB DDR7, HDMI + 3xDP, 2572MHz - DUAL-RTX5070-O12G , 90YV0M17-M0NA00

ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Features:

• Compact Dual-Fan Design
  Optimized for Space-Conscious Builds
• Axial-Tech Fans
  Longer blades improve airflow and dispersion
• Vented Backplate
  Enhanced cooling for optimal performance
• Dual-Ball Fan Bearings
  Up to twice the lifespan of sleeve bearings
• Dual BIOS
  Toggle between Performance or Quiet modes
• GPU Tweak III
  Ultimate GPU tuning utility
  The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
• Fifth-Gen Tensor Cores
  Max AI performance with FP4 and DLSS 4
• New Streaming Multiprocessors
  Optimized for neural shaders
• Fourth-Gen Ray Tracing Cores
  Built for Mega Geometry
• AI-Enhanced Graphics and Performance
  NVIDIA DLSS 4 with Multi Frame Generation
• Game-Winning Responsiveness
  NVIDIA Reflex 2 with Frame Warp
• True-to-Life Graphics
  Full ray tracing with neural rendering
• Digital Humans and AI Assistants
  NVIDIA ACE
• Accelerate Your Creativity
  NVIDIA Studio creator tools and technology
• Enhance Any Video with AI
  NVIDIA Broadcast and ninth-gen NVIDIA Encoder
• Performance and Reliability
  NVIDIA app with Game Ready and Studio Drivers
• The Ultimate Gaming Display Technologies
  NVIDIA G-SYNC
• Compact Dual-Fan Design
  A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
• Axial-tech Upgrades
  Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
• 0dB Technology
  To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
• Dual Ball Fan Bearings
  Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
• Axial-tech Upgrades
  Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
• Airflow comparison between the Axial-tech fan design and a standard fan.
  0dB Technology
• To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
  Dual RTX 5070 fan illustration
  Dual Ball Fan Bearings
• Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
  Exploded view of a graphics card fan showcasing dual ball fan bearings for enhanced durability and cooling performance.
  Vented Backplate
• A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
• Phase-Change GPU Thermal Pad
  By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
• ASUS GPU Guard
  ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.
• Protective Backplate
  The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
• Stainless Steel Bracket
  The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
• Dual BIOS
  Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
• Auto−Extreme Technology
  Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact, . The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
• RTX. It’s On.
  The Ultimate in Ray Tracing and AI
  RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

  NVIDIA DLSS 4
  Supreme Speed, Superior Visuals. Powered by AI.
  DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
• Your Creative AI-dvantage
  NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
• NVIDIA Broadcast
  Your AI-Powered Home Studio
  Take your livestreams, voice chats, and video calls to the next level with AI-enhanced voice and video. Remove distracting background noise, customize your background, and more at the touch of a button.
• RTX Video
  Upgrade Your Video Viewing
  RTX Video Super Resolution and HDR uses AI to transform your videos in Chrome, Edge, or Firefox—automatically sharpening details and wiping out compression artifacts. Enjoy stunning clarity in up to 4K.
• RTX Remix
  Remaster The Classics
  RTX Remix allows modders to easily capture game assets, enhance materials with AI tools, and create stunning RTX remasters with ray tracing and DLSS.
• Video Editing
  Speed Meets Creativity
  Harness the power of the ninth-gen NVIDIA Encoder (NVENC) for blazing-fast video exports and AI-driven effects in DaVinci Resolve, Adobe Premiere Pro, and more.
• Game Ready and Studio Drivers
  GeForce Game Ready and Studio Drivers deliver the best experience for your favorite games. They’re finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
• NVIDIA App
  The essential companion for PC gamers and creators. Keep your PC up to date with the latest NVIDIA drivers and technology. Optimize games and applications with a new unified GPU control center, and discover the latest NVIDIA apps.
• NVIDIA G-SYNC
  NVIDIA G-SYNC® is a suite of the ultimate display technologies. They offer enhanced motion clarity, smooth tear-free immersion, ultra-high frame rates, and more.
• Virtual Reality
  The highest-performance graphics deliver the smoothest, most immersive VR experiences.

Specifications:

• Model
  DUAL-RTX5070-O12G
• Graphic Engine
  NVIDIA® GeForce RTX™ 5070
• AI Performance
  1000 TOPs
• Bus Standard
  PCI Express 5.0
• OpenGL
  OpenGL®4.6
• Video Memory
  12GB GDDR7
• Engine Clock
  OC mode: 2572MHz
  Default mode: 2542MHz (Boost Clock)
• CUDA Core
  6144
• Memory Speed
  28 Gbps
• Memory Interface
  192-bit
• Resolution
  Digital Max Resolution 7680 x 4320
• Interface
  Yes x 1 (Native HDMI 2.1b)
  Yes x 3 (Native DisplayPort 2.1b)
  HDCP Support Yes (2.3)
• Maximum Display Support
  4
• NVlink/ Crossfire Support
  No
• Accessories
  1 x Speedsetup Manual
  1 x Thank You Card
  1 x Adapter Cable (1 to 2)
• Software
  ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions
  249 x 126 x 50.6 mm
• Recommended PSU
  750W
• Power Connectors
  1 x 16-pin
• Slot
  2.53 Slot
• SFF Ready
  Compatible
