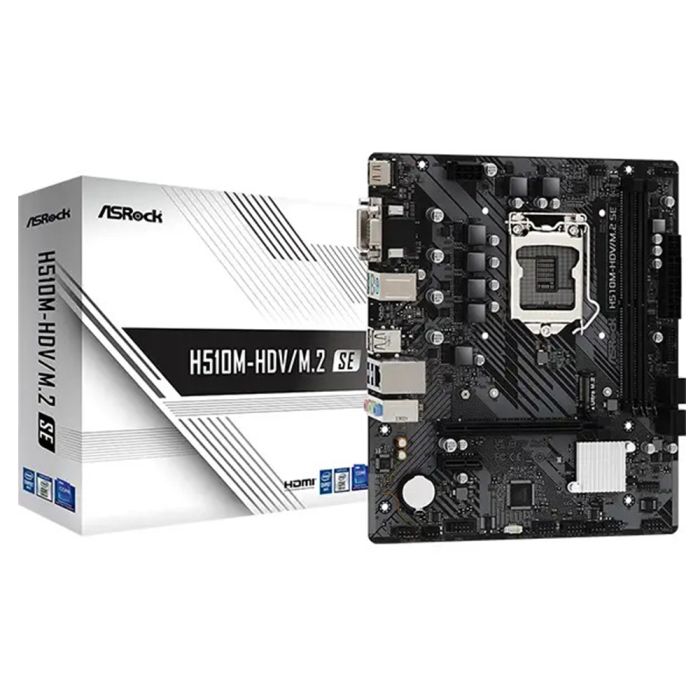

Asrock H510M-HDV/M.2 SE, Socket 1200, DDR4, mATX, Motherboard

• Asrock H510M-HDV/M.2 SE, Socket 1200, DDR4, mATX, Motherboard
• Asrock Intel H510, LGA1200, DDR4 Micro ATX motherboard - H510M-HDV/M.2 SE
• Introducing the Asrock H510M-HDV/M.2 SE. This high-quality motherboard is designed to support Intel 10th Gen and 11th Gen processors, offering reliable performance for gaming and productivity. With its Micro ATX form factor, it's perfect for compact builds without sacrificing power. The H510M-HDV/M.2 SE features a convenient M.2 slot for fast SSD storage, maximizing data transfer speeds. This motherboard is equipped with a range of connectivity options, making it suitable for a variety of setups. Get ready to experience seamless performance and smooth multitasking with the Asrock H510M-HDV/M.2 SE motherboard. Upgrade your system with this versatile and efficient motherboard and take your computing to the next level.
• Specification

CPU

• Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
• Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

• Intel® H470

Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
• *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
• 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• 1 x HDMI
• Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
• Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
• 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz
• *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Graphics specifications may vary between CPU types.

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

Slots

• Intel® 11th Gen & 10th Gen Processors:
• 1 x PCIe 4.0 x16 Slot (PCIE1)*
• Intel® 11th Gen Processors support PCIe 4.0 x16
• Intel® 10th Gen Processors support PCIe 3.0 x16
• Intel® H470 Chipset:
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• *Supports NVMe SSD as boot disks

Storage

• Chipset:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors
• *Supports Intel® Optane™ Technology
  Supports NVMe SSD as boot disks

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
• *All USB ports support ESD Protection

Connector

• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• *CPU_FAN1 supports the fan power up to 1A (12W).
• **CPU_FAN2/WP supports the fan power up to 2A (24W).
• ***CHA_FAN1~2/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports
• 4 x USB 3.2 Gen1 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Form Factor

• Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm

OS

• Microsoft® Windows® 10 64-bit / 11 64-bit
