main product photo

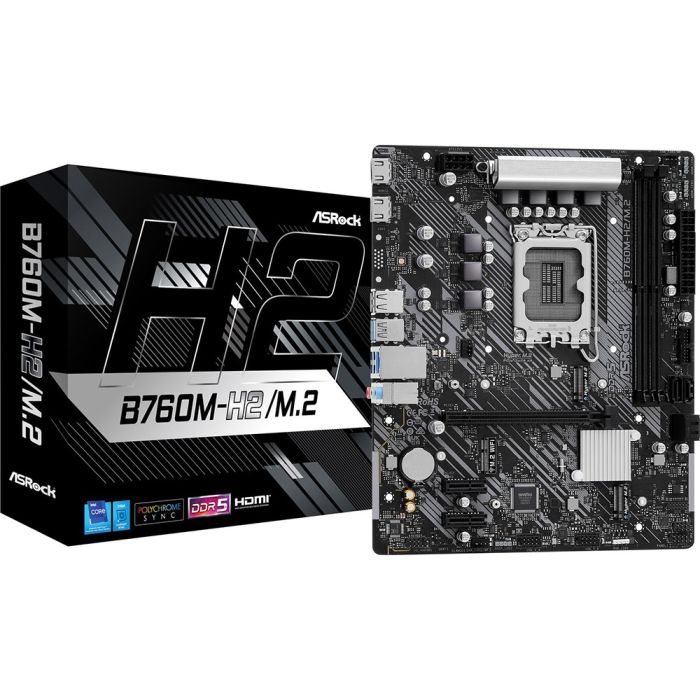

ASRock B760M-H2/M.2, mATX Motherboard, Intel LGA1700, 2 X DDR5

£84.99 £89.99
SKU
SK-21851
Availability: In stock
  • 90-MXBN00-A0UAYZ
  • ASRock B760M-H2/M.2
  • MATX FORM FACTOR
  • INTEL B760 CHIPSET
  • SOCKET 1700
  • DDR5 (MAX: 96GB / 2 SLOTS)
  • 2 X M.2 & 6 X USB & 4 X SATA
  • HDMI
    • More Info
Add to Compare
  • CPU
  • Installed Processors (Max): 0 (1)
  • Supported Processor Manufacturer: Intel
  • Supported Processors: 14th, 13th & 12th Gen Intel Core Processors
  • 64-bit Support: Yes
  • Socket: LGA1700
  • Rear Panel I/O Ports
  • USB Ports: 4 x USB 3.0
  • 2 x USB 2.0
  • HDMI Port: 2 x HDMI 2.1
  • Internal I/O Connectors
  • SATA Connectors: 4 x SATA III
  • USB Connectors: 1 x USB 3.0 header (supports 2 ports)
  • 2 x USB 2.0 headers (supports 4 ports)
  • Speaker: 1 x Speaker header
  • Memory
  • Memory Bus Speed: Up to 7200 MHz
  • Memory Type: DDR5
  • Motherboard
  • Northbridge: Intel B760
  • RAID Supported: Yes
  • RAID Format: RAID 0, 1, 5, 10
  • SATA Supported: Yes
  • Rear Panel I/O Ports
  • RJ-45 Ports: 1 x RJ-45
  • Audio Line In Ports: 1 x 3.5mm Jack
  • Audio Line Out Ports: 1 x 3.5mm Jack
  • Microphone In Port: 1 x 3.5mm Jack
  • Internal I/O Connectors
  • Front Panel Connectors: 1 x Front Panel
  • 1 x Front Audio
  • Cooling Fan Support: 1 x CPU fan header
  • 1 x CPU/Water Pump fan header
  • 2 x Chassis/Water Pump fan headers
  • Chassis Intrusion Connector: 1 x Chassis Intrusion header
  • TPM Header: 1 x SPI TPM header
  • Power Connector Port: 1 x 24-pin ATX
  • 1 x 8-pin EPS
  • Other Connectors: 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4)
  • 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
  • 1 x M.2 slot, Key E, Type 2230 for WiFi
  • 3 x 3-pin ARGB LED headers
  • Expansion
  • Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
  • 2 x PCI Express 3.0 x1 slots
  • Memory
  • Maximum RAM: 96 GB
  • Memory Slot: 2 x DIMM
  • Graphics Device
  • Integrated Graphics Supported: Yes
  • Sound
  • Integrated Sound: Realtek ALC897
  • Warranty
  • Warranty: 3 Years
  • Network
  • Integrated Network: Dragon RTL8125BG
  • Network Speeds Supported: Up to 2.5 Gbps
  • Wireless LAN: No
  • Bluetooth: No
  • System Requirements
  • Operating Systems Supported: Microsoft Windows 11
  • System
  • Software Included: Yes
  • Drivers: Yes
  • Physical
  • Form Factor: mATX Motherboard
  • In The Box: Motherboard
  • User Manual
  • I/O Shield
  • 2 x SATA Cables
  • 3 x M.2 Screws
  • Width: 201 mm
  • Length: 244 mm
