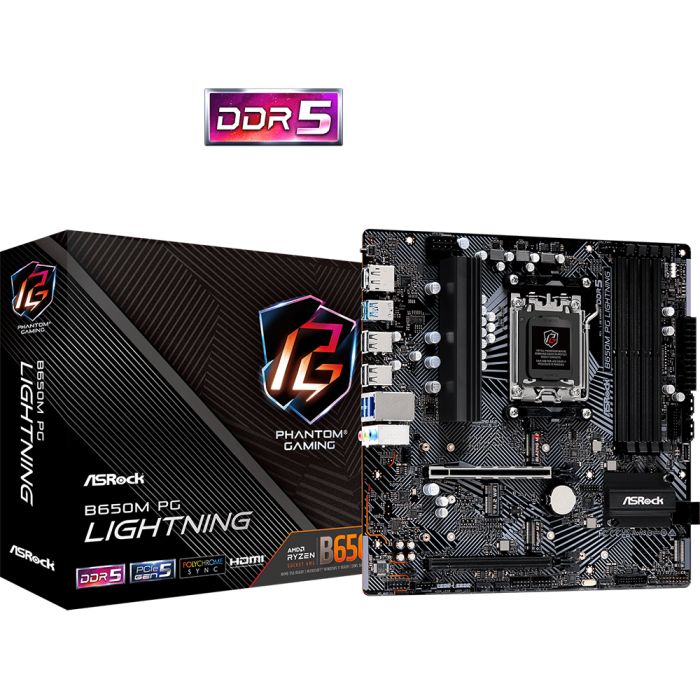

Asrock B650M PG LIGHTNING, AM5, mATX, 4xDDR5, 2.5G LAN, 3xM.2

Unique Feature

• Superb Productivity
• - PCIe Gen5 (M.2)
• - Dual Channel DDR5
• Rock-Solid Durability
• - 6+2+1 Power Phase, 50A Dr.MOS
• Ultrafast Connectivity
• - 2.5G LAN
• EZ Update
• - BIOS Flashback Button
• - ASRock Auto Driver Installer
• EZ Troubleshooter
• - ASRock Post Status Checker

CPU

• - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
• *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Chipset

• - AMD B650

Memory

• - Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM Slots
• - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
• - Max. capacity of system memory: 256GB
• - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• *Please refer to Memory Support List for more information.

BIOS

• - 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Nahimic Audio

LAN

• - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Phantom Gaming LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control

Slots

• CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
• Chipset:
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• - Supports AMD CrossFire™
• - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• * Supports NVMe SSD as boot disks

Storage

• CPU:
• - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• * Supports NVMe SSD as boot disks

RAID

• - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
• * Requires additional M.2 NVMe expansion cards to support RAID 10

USB

• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 1 x USB 3.2 Gen1 Type-C (Front)
• - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
• - 8 x USB 2.0 (4 Rear, 4 Front)
• * All USB ports support ESD Protection

Connector

• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• * Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• **** CPU_FAN2/WP supports the fan power up to 2A (24W).
• ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• - 2 x Antenna Mounting Points
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• - 2 x USB 3.2 Gen1 Type-A Ports
• - 4 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - 1 x BIOS Flashback Button
• - HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

• Software
• - ASRock Motherboard Utility (Phantom Gaming Tuning)
• - ASRock Phantom Gaming LAN Software
• - ASRock Polychrome SYNC*
• UEFI
• - ASRock Full HD UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
• - 1 x User Manual
• - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 4 x Screws for M.2 Sockets

Form Factor

• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS
• - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications
• - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
