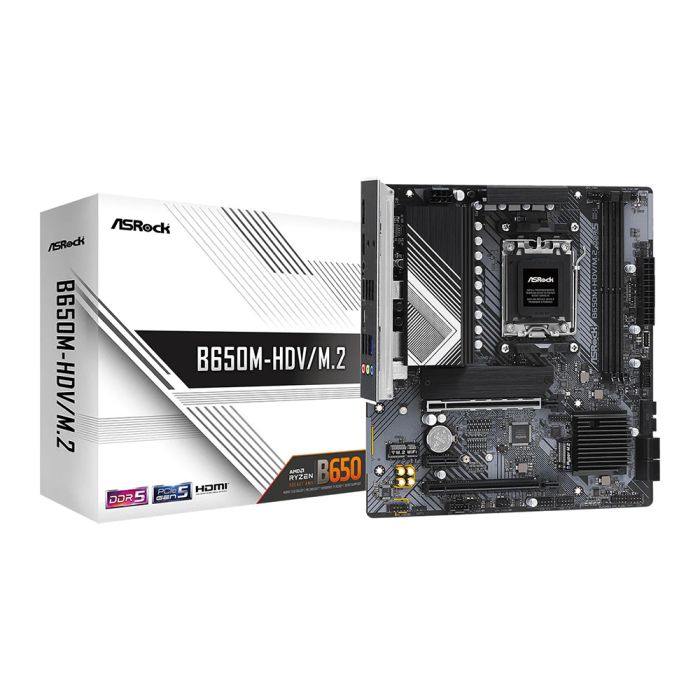

main product photo

Asrock B650M-HDV/M.2, AM5, mATX, 2xDDR5, 2.5G LAN, 2xM.2

£112.00 £119.00
SKU
SK-21348
Availability: Out of stock
  • ASROCK B650M-HDV/M.2
  • AMD B650 Chipset
  • Socket AM5
  • 2 x DDR5
  • PCIe 4.0
  • 2x M.2
  • 2.5GbE
  • AMD EXPO™
  • USB 3.2 Gen2
  • MicroATX
More Info
Add to Compare
  • Core Specifications
  • Edition B650M-HDV/M.2
  • Form Factor MicroATX
  • CPU Socket AM5
  • Chipset AMD B650
  • RAM Memory Support
  • Memory Type DDR5
  • Memory Channel Dual (2)
  • Memory Type (ECC) Non-ECC
  • Memory Type (R/U) UDIMM (Unbuffered)
  • Memory Speed (Mhz) DDR5 - 6400+(OC)
  • Max. Memory Capacity 64GB (2x32GB)
  • Audio
  • Audio Realtek ALC897 7.1 HD Audio
  • Graphics Support
  • Primary GPU Interface PCIe 4.0 (x16)
  • NVIDIA SLI Support N/A
  • AMD CrossFire Support Supported
  • Integrated Graphics Requires Processor Graphics or Discrete GPU
  • On-Board Graphics Connectors
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
  • Internal Connectivity
  • Expansion Slots
  • 1 x M.2 Key E
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 4 x SATA 6GB/s
  • SATA Support SATA3
  • RAID Support via Depends on SAS HBA (Not Included)
  • Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power LED / Speaker Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • External Connectivity
  • Network Interface Type Wired 2.5 Gigabit LAN
  • Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)
  • Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x WiFi Antenna connectors
  • Additional Specifications
  • Water Cooled No
  • Cooling Passive Heatsinks
  • QPI Speed N/A
  • Board Dimensions 240 x 226 mm
