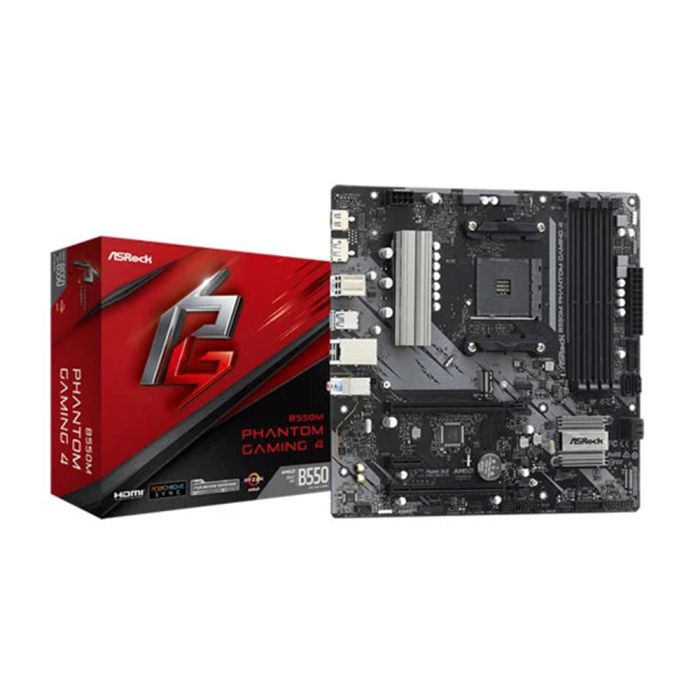

Asrock B550M PHANTOM GAMING 4, AM4, mATX, 4xDDR4, HDMI/DP

£84.99 £89.99
SKU
SK-21403
Availability: In stock
  • ASRock B550M Phantom Gaming 4
  • AMD B550 Chipset
  • Socket AM4
  • 4 x DDR4
  • PCIe 4.0
  • Dual M.2
  • GbE
  • USB 3.2 Gen 1
  • Micro-ATX
More Info
Add to Compare
  • Core Specifications
  • Edition B550M Phantom Gaming 4
  • Form Factor MicroATX
  • CPU Socket AM4
  • Chipset AMD B550
  • RAM Memory Support
  • Memory Type DDR4
  • Memory Channel Dual (2)
  • Memory Type (ECC) ECC/Non-ECC
  • Memory Type (R/U) UDIMM (Unbuffered)
  • Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4533+(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666(OC)
  • DDR4 - 4733+(OC)
  • Max. Memory Capacity 128GB (4x32GB)
  • Audio
  • Audio Realtek ALC897 7.1 HD Audio
  • Graphics Support
  • Primary GPU Interface PCIe 4.0 (x16)
  • NVIDIA SLI Support N/A
  • AMD CrossFire Support N/A
  • Integrated Graphics
  • On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
  • Internal Connectivity
  • Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • SATA Support SATA3
  • RAID Support via SATA
  • Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • External Connectivity
  • Network Interface Type Wired Gigabit LAN (10/100/1000)
  • Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
  • Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • Additional Specifications
  • Water Cooled No
  • Cooling
  • QPI Speed N/A
  • Board Dimensions 244 x 244 mm
