main product photo

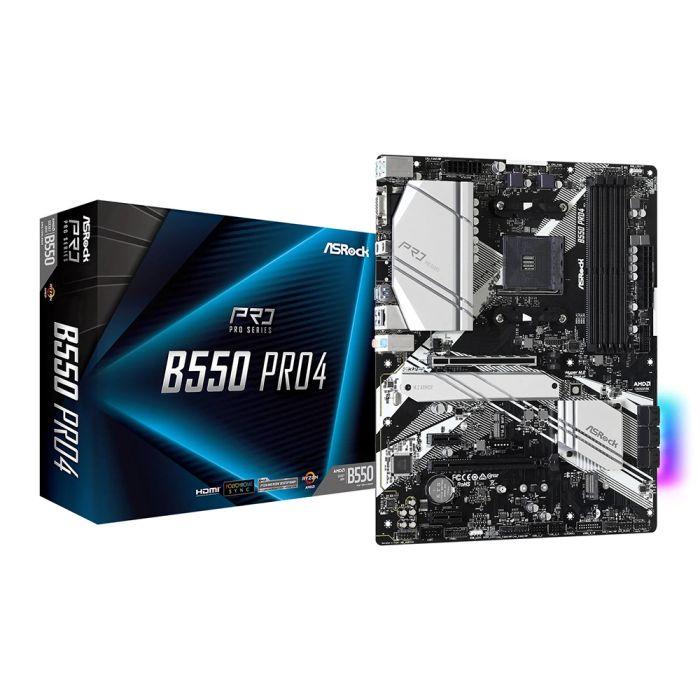

Asrock B550 PRO4, Full ATX, 4 x DDR4, VGA/HDMI, PCIe4, RGB Lighting, M.2

£96.99 £109.00
SKU
SK-21413
Availability: Out of stock
  • ASRock B550 Pro4 Motherboard
  • AMD B550
  • Socket AM4
  • DDR4
  • SATA3
  • PCIe 4.0
  • Dual M.2
  • CrossFire
  • GbE Lan
  • ATX
  • 4710483931482
More Info
Add to Compare
  • Edition B500 Pro4
  • Form Factor ATX
  • CPU Socket AM4
  • Chipset AMD B550
  • Memory Type DDR4
  • Memory Channel Dual (2)
  • Memory Type (ECC) ECC/Non-ECC
  • Memory Type (R/U) UDIMM (Unbuffered)
  • Memory Speed (Mhz): upto DDR4 - 3200 (none OC) & DDR4 - 4733+(OC)
  • Max. Memory Capacity 128GB
  • Audio Realtek ALC1200 7.1 HD Audio
  • Primary GPU Interface PCIe 4.0 (x16)
  • NVIDIA SLI Support Not Supported
  • AMD CrossFire Support 2-Way CrossFire
  • Integrated Graphics Requires Processor Graphics or Discrete GPU
  • On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.1
  • Internal Connectivity
  • Expansion Slots
  • 2 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA3
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x M.2, 22-60/80/110, PCIe/SATA
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
  • SATA Support SATA3
  • RAID Support via
  • Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • External Connectivity
  • Network Interface Type Wired Gigabit LAN (10/100/1000)
  • Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
  • Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x D-Sub (VGA)
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • Additional Specifications
  • Water Cooled No
  • Cooling Passive Heatsinks
  • QPI Speed N/A
  • Board Dimensions 305 x 244 mm
