main product photo

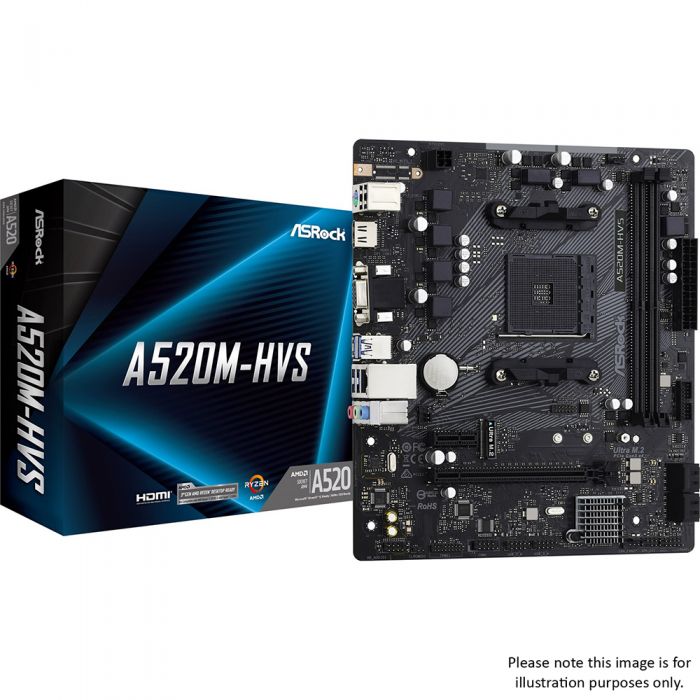

Asrock A520M-HVS, AM4, mATX, 2xDDR4, VGA/HDMI, M.2/SATA

£49.99 £64.99
SKU
SK-21311
Availability: In stock
  • Asrock A520M-HVS
  • mATX Form Factor
  • AMD A520 Chipset
  • Socket AM4
  • DDR4 (Max: 64GB / 2 slots)
  • 1 x M.2 & 6 x USB & 4 x SATA
  • HDMI and VGA
More Info
Add to Compare
  • CPU Socket Socket AM4
  • CPU Brand AMD
  • Supported Processors Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
  • 64-bit Support Yes
  • Rear Ports 4 x USB 3.0
  • Rear Ports 2 x USB 2.0
  • Rear Ports HDMI Port 1 x HDMI 2.1
  • Rear Ports VGA Port 1 x D-Sub (VGA)
  • Rear Ports Keyboard/Mouse Combo Port 1 x PS/2
  • Rear Ports RJ-45 Ports 1 x RJ-45
  • Rear Ports Audio Line In Ports 1 x 3.5mm Jack
  • Rear Ports Audio Line Out Ports 1 x 3.5mm Jack
  • Rear Ports Microphone In Port 1 x 3.5mm Jack
    Internal I/O Connectors
  • SATA Connectors 4 x SATA III
  • USB Connectors 1 x USB 3.0 header (supports 2 ports)
  • 2 x USB 2.0 headers (supports 4 ports)
  • Speaker 1 x Speaker header
  • Front Panel Connectors 1 x Front Panel
  • 1 x Front Audio
  • Cooling Fan Support 1 x CPU fan header
  • 2 x Chassis fan headers
  • Serial Connectors 1 x COM header
  • Chassis Intrusion Connector 1 x Chassis Intrusion
  • TPM Header 1 x SPI TPM header
  • Power Connector Port 1 x 20+4-pin ATX
  • 1 x 4-pin EPS
  • Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280)
    Memory Bus Speed 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) /
  • 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
  • Memory Type DDR4
  • Maximum RAM 64 GB
  • Memory Slot 2 x DIMM
  • Chipset Manufacturer AMD
  • Northbridge A520
  • RAID Supported Yes
  • RAID Format RAID 0, 1, 10
  • SATA Supported Yes
  • Number of PCI Express Slots 1 x PCI Express 3.0 x16
  • 1 x PCI Express 3.0 x1
  • Graphics Device
  • Integrated Graphics Supported Yes
  • Warranty 3 Years
  • Integrated Sound Realtek ALC887
  • Integrated Network Realtek RTL8111H
  • Network Speeds Supported 10/100/1000 Mbps
  • Operating Systems Supported Microsoft Windows 10 64-bit
  • Form Factor MicroATX Motherboard
  • Width 230 mm
  • Length 201 mm
