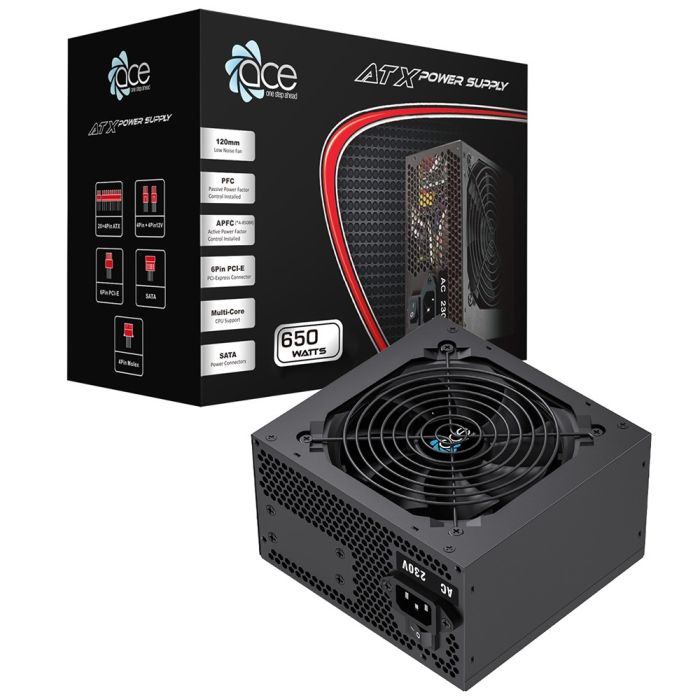

main product photo

ACE 650w ATX PSU With 120mm Fan and Flat Black Cables

£21.99 £24.99
SKU
SK-21831
Availability: In stock
  • Power Factor Control (PFC)
  • Cooling: 12cm Black Fan
  • Black flat cables
  • New Version ATX1.3/2.03
  • Silent with better ventilation
  • ATX 12V compliant for most CPUs and mainboards
  • Input Range: 230Vac, 5A, 50-60Hz
  • 1 x 6+2 Pin PCI-e Connector
  • 6 x SATA Connectors
  • 1 x Molex Connectors
PSU Specifications
  • DC Output Max: 650W
  • AC INPUT: 230 VAC 5A 50-60Hz
  • +3.3V 30A | +5V 36A | +12V1 30A | -12V 0.5A | +5VSB 2.5A
Connectors
  • 20+4 Pin Main Connectors: 1
  • 4+4 Pin 12V Connectors: 1
  • SATA Connectors: 6
  • 4-Pin Molex Connectors: 1
  • 6+2 Pin PCI-e Connectors: 1
More Info
Add to Compare

Detailed Specifications

  • Dimensions: 150mm x 140mm x 85mm (W x H x D)
  • Input Voltage: 230 VAC
  • Input Current: 5A
  • Input Frequency Range: 50-60Hz
  • PFC: Yes - Power Factor Control
  • Power Good Signal: 150-450ms
  • Hold Up Time: 1ms-40ms
  • Efficiency: 75%
  • MTBF: 100,000 Hours
  • Protection: OVP / UVP/ OPP
  • Power: 650W
  • Operation Temperature: 45°C
  • Safety: CE / UKCA / RoHS / WEEE
  • Cooling: 120mm Black Fan
  • Noise: <17 dBA

    General Specifications

    • Manufacturer Part Number: A-650BR-BLK
  • EAN Number: 5055492413338
  • Has Mains Plug: No
  • Colour: Black
  • What's In The Box: PSU, Manual, Cable Ties & Screws
  • Unit (Product) Dimensions (mm): 150mm x 140mm x 85mm (W x H x D)
  • Packaging Dimensions (mm): 237mm x 172mm x 96mm (W x H x D)
  • Net Weight (KGs): 1.57 KGs
  • Gross Weight (KGs): 1.64 KGs
