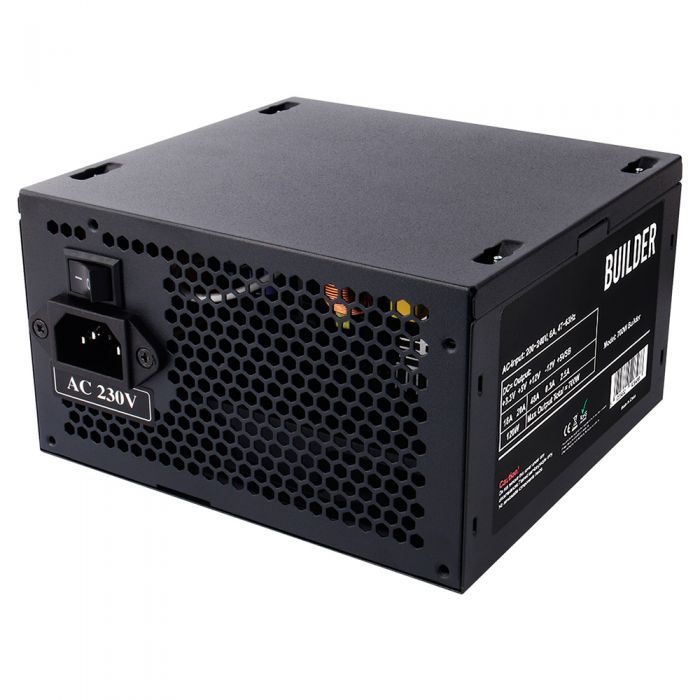

700W Builder PSU PPFC 6xSata 1xPCIE62 4+4pin
£22.99
£34.99
SKU
SK-20855
Availability:
In stock
- Builder Series - The new Builder range is available in two configurations, a 600W or a 700W with an efficiency of 70%.
- Type - The Builder is an ATX 12V 700W power supply making it compatibility for all types of Mainboards and CPU’s.
- Cooling Fan - A 12cm cooling fan enables excellent airflow and a power supply with a lower noise.
- Connectors - The Builder 700W comes with a 20 + 4 pin (535mm), 4 + 4 pin (545mm), 1 x 6 + 2 Pin (445mm), 4 x SATA (970mm), 1 x SATA / 1 x Molex / 1 x FDD (685mm) & 2 x Molex & 1 x SATA (640mm).
- Protection - Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP), Over Power Protection (OPP) and Short Circuit Protection (SCP).
PSU Specifications
- AC INPUT: 200-240VAC 6A 47-63HZ
- DC: +3.3V +5V +12V1 -12V +5VSB
- Output: 18A 20A 48A 0.3A 2.5A
- Max: 700W
- 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 6
- 4-Pin Molex Connectors: 3
- 6+2 Pin PCI-e Connectors: 1
- Floppy Drive Connectors: 1
Detailed Specifications
- Dimensions: 150mm x 85mm x 140mm (W x H x D)
- Input Voltage: 200-240VAC
- Input Current: 6A
- Input Frequency Range: 47-63HZ
- PFC: PPFC
- Power Good Signal: 306ms
- Hold Up Time: 8ms
- Efficiency: 70%
- MTBF: 50,000 Hours
- Protection: OVP / UVP / OLP / OPP / SCP
- Power: 700W
- Operation Temperature: 0-40°C
- Safety: CE / CCC
- Cooling: 120mm Cooling Fan
- Noise: 40dBA
