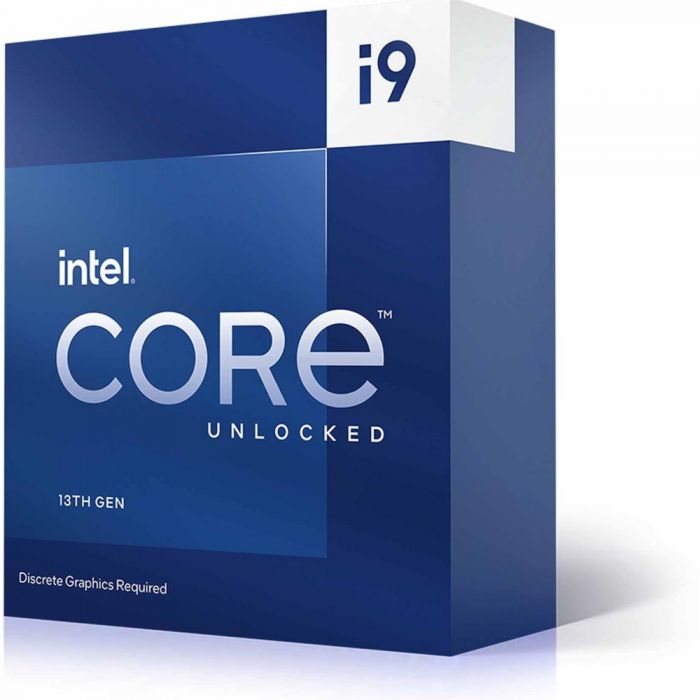

Intel i9-13900K CPU, s1700, 3.0/5.8 Turbo, 24-Core, 125W/253W Turbo
- Intel i9-13900K CPU
- 24 Total Cores
- 8 Performance-cores
- 16 Efficient-cores
- 32 Threads
- Socket LGA1700
- 3.00 GHz Performance-core Base Frequency
- 5.80 GHz Performance-core Max Turbo Frequency
- 2.20 GHz Efficient-core Base Frequency
- 4.30 GHz Efficient-core Max Turbo Frequency
- 125W/253W Turbo
- BX8071513900K
Intel i9-13900K CPU, s1700, 3.0/5.8 Turbo, 24-Core, 125W/253W Turbo - BX8071513900K
With the fastest chip ever built by Intel, take your PC setup to all new heights. The Intel Core i9-13900K 13th Gen Desktop Processor is built with advancing performance hybrid architecture, with up to eight performance cores (P-Core) and up to 16 efficient cores (E-core), combined with workloads that are intelligently routed by Intel Threat Director. Built for modern gaming, maximise performance to play the latest games whilst also being able to tackle other workloads. For a superior creating experience the 13th Gen Intel Core processor family offers faster P-cores and more E-cores, supporting DDR4/DDR5 and PCIe 4.0/5.0. With a highly flexible architecture and industry-leading tools, you can achieve the ultimate in performance customisation.
- CPU Specifications
Total Cores 24
# of Performance-cores 8
# of Efficient-cores 16
Total Threads 32
Max Turbo Frequency 5.80 GHz
Intel Thermal Velocity Boost Frequency 5.80 GHz
Intel Turbo Boost Max Technology 3.0 Frequency 5.70 GHz
Performance-core Max Turbo Frequency 5.40 GHz
Efficient-core Max Turbo Frequency 4.30 GHz
Performance-core Base Frequency 3.00 GHz
Efficient-core Base Frequency 2.20 GHz
Cache 36 MB Intel Smart Cache
Total L2 Cache 32 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W
- Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported Yes
- Processor Graphics
Processor Graphics Intel UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.65 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines 2
Intel Quick Sync Video Yes
Intel Clear Video HD Technology Yes
# of Displays Supported 4
Device ID 0xA780
- Expansion Options
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20
- Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
TJUNCTION 100C
- Advanced Technologies
Intel Gaussian & Neural Accelerator 3.0
Intel Thread Director Yes
Intel Deep Learning Boost (Intel DL Boost) Yes
Intel Speed Shift Technology Yes
Intel Adaptive Boost Technology Yes
Intel Thermal Velocity Boost Yes
Intel Turbo Boost Max Technology 3.0 Yes
Intel Turbo Boost Technology 2.0
Intel Hyper-Threading Technology Yes
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Flex Memory Access Yes
Intel Volume Management Device (VMD) Yes
- Security & Reliability
Intel vPro Eligibility Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
Intel Threat Detection Technology (TDT) Yes
Intel Active Management Technology (AMT) Yes
Intel Standard Manageability (ISM) Yes
Intel Remote Platform Erase (RPE) Yes
Intel One-Click Recovery Yes
Intel Hardware Shield Eligibility Yes
Intel Control-Flow Enforcement Technology Yes
Intel Total Memory Encryption - Multi Key Yes
Intel AES New Instructions Yes
Secure Key Yes
Intel OS Guard Yes
Intel Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel Stable IT Platform Program (SIPP) Yes
Intel Virtualization Technology with Redirect Protection (VT-rp) Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
